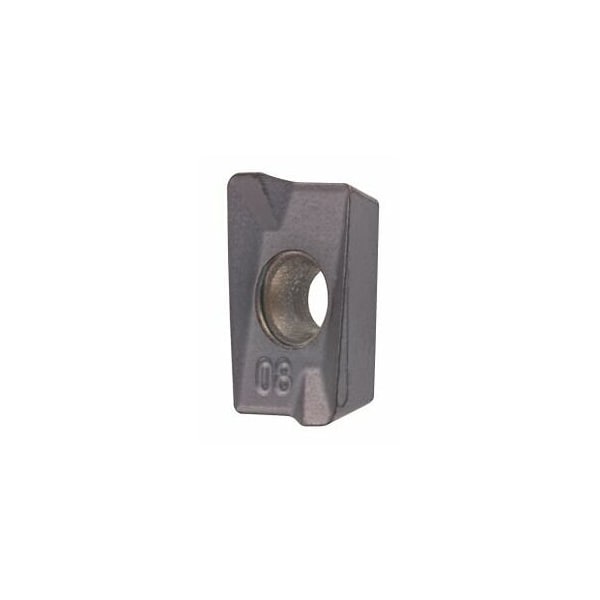

Inserts for Milling Cutters, APPT 100308 PDSR, General Purpose
Mfr # 215888 UNI
Zoro # G716120822
product price: $10.29
/eaKey Features
Insert Material
Carbide
Corner Radius
0.4 mm
Insert Type
APPT 100308 PDSR
Insert Thickness
3.56 mm
Grade
HBM020
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
215888 UNI
Zoro #
G716120822
UPC #
-
Country of Origin
India
Dimensions
Corner Radius
0.4 mm
Insert Thickness
3.56 mm
Min. Cutting Depth
0.1 mm
Details
Item
Indexable insert for milling
Insert Material
Carbide
Insert Type
APPT 100308 PDSR
Grade
HBM020
Number of Changes/Inserts
2
Feed Per Tooth
0.12 – 0.27 mm
Indexable insert clearance angle
10°
Correction Factor
1.5
Description
Version: PVD-coated carbide indexable inserts for machining various materials. The universal tool material enables reliable working under changing operating conditions. These indexable inserts are characterised by a high degree of wear resistance and tensile strength as well as the possibility for use for wet and dry machining. Note: Standard application values for ae = 0.3 x D. apmax = 4.8 mm. Insert thickness: 3.56 mm Corner radius: 0.4 mm Feed fz per tooth: 0.12 - 0.27 mm Grade: UNI
