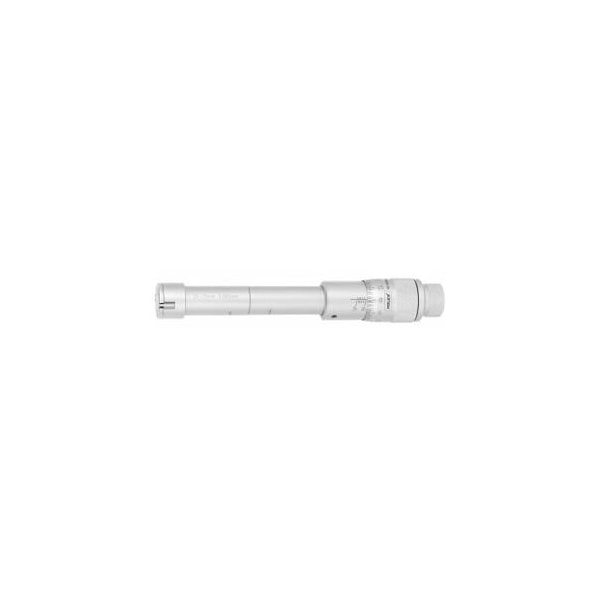

Internal Micrometer, Measuring Range: 20-25 mm
Mfr # 428990 20-25
Zoro # G414556473
product price:Â
$
569.99
/ea
Free Shipping & Returns
Key Features
Micrometer Barrel Graduations
1/50 mm
Measurement Technology
analogue
Scale Divisions
0.005 mm
Dimension A
0.5 mm
Measuring Depth with Extension
240 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 428990 20-25
- Zoro #
- G414556473
- UPC #
- -
- Country of Origin
- China
Dimensions
- Dimension A
- 0.5 mm
- Measuring Depth with Extension
- 240 mm
- Setting Ring Dia.
- 25 mm
- Standard Measuring Depth
- 90 mm
Details
- Item
- 3-point internal micrometer
- Range
- 20-25 mm
- Micrometer Barrel Graduations
- 1/50 mm
- Measurement Technology
- analogue
- Scale Divisions
- 0.005 mm
- Packaging
- sturdy box
- Measuring Range
- 20 mm -25 mm
- Error Limit
- 0.006 mm
Description
Satin chrome plated scales and operating parts (from Diameter 12 with carbide jaws). Self-centering micrometer head with 3 measuring jaws (from Diameter 12 with carbide jaws). Supplied with: Setting ring (for adjustment) and extension. Optional extras: Extension No. 428993, setting rings No. 484030.
