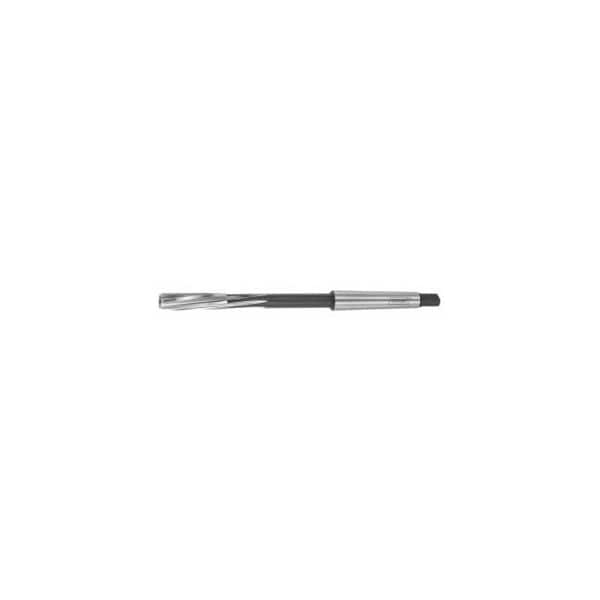

Machine Reamer, with Morse Taper Shank, Uncoated, 44 mm
Mfr # 164000 44
Zoro # G214483276
product price: $402.99
/ea
Free Shipping & Returns
Key Features
Material - Machining
HSS E
Shank Type - Machining
Morse Taper
Finish - Machining
Uncoated
Primary Material Application
for through hole
Overall Length
336 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
164000 44
Zoro #
G214483276
UPC #
-
Country of Origin
Germany
Dimensions
Size - Decimal
44 mm
Overall Length
336 mm
Details
Item
Phillips bit
Material - Machining
HSS E
Shank Type - Machining
Morse Taper
Finish - Machining
Uncoated
Primary Material Application
for through hole
Number of Flutes
12
Description
Even number of teeth with irregular spacing. The hole is accurately round and free of chatter marks. The cylindrical ground land on the plain cutting section smooths the hole and guides the reamer. With Morse taper shank. Reamers finish ground for fit H7. Application: For reaming through holes, as the chips are evacuated in the cutting direction. Also suitable for blind holes due to the short chamfer lead. Note: For suitable reducing adapters for tools with MT shanks see No. 343000-343530. Application for type of drilling: for through hole Tolerance: H7 Number of cutting edges Z: 12 Tolerance: H7 Flute length Lc: 83 mm Overhang L1: 215 mm Overall length L: 336 mm Number of cutting edges Z: 12 Morse taper MT size: 4
