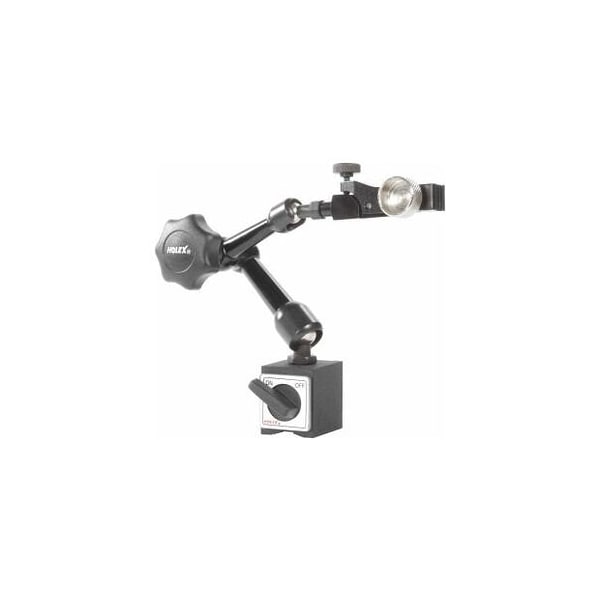

Magnetic Measuring Stand with Fine Adjustment at the Column, Type: 120SF
Mfr # 441180 120SF
Zoro # G314554746
product price:Â $95.49
/eaKey Features
Type
120SF
Magnetic Base Length
36 mm
maximum loading
2.7 kg
Magnetic Base Width
30 mm
Throat Depth
178 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
441180 120SF
Zoro #
G314554746
UPC #
-
Country of Origin
China
Dimensions
Magnetic Base Length
36 mm
Magnetic Base Width
30 mm
Throat Depth
178 mm
Magnetic Base Height
36 mm
Details
Item
measuring stand
Type
120SF
maximum loading
2.7 kg
Magnetic Force
320 N
Connection Thread at Bottom
M5
Description
Mechanical magnetic measuring stand with central locking mechanism. All three joints are clamped in a single action. Continuously adjustable clamping force with high stability. Ball joints enable quick and easy positioning. Magnetic base with rotary switch and Vee sole. Standard dial indicator mounting for clamping shank Diameter 6 mm, Diameter 8 mm and dovetail, fine adjustment at the indicator holder.
