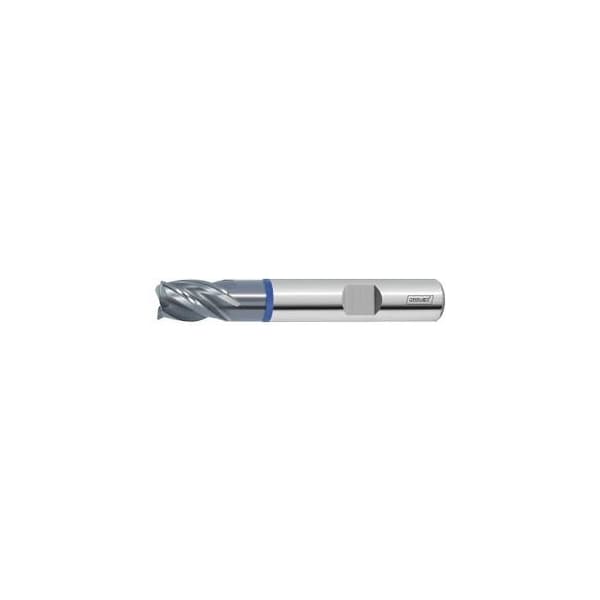

Pro INOX Solid Carbide End Mill for Stainless Steels, AlCrN Coated, 3 mm
Mfr # 203013 3
Zoro # G514381760
product price: $37.75
/eaKey Features
End Mill Style
Chamfer
Series
Pro Inox
Shank Type
DIN 6535 HB to h6
Number of Flutes
4
Cutting Direction
horizontal, oblique and vertical
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203013 3
Zoro #
G514381760
UPC #
-
Country of Origin
Germany
Dimensions
Milling Diameter
3 mm
Overall Length
50 mm
Length of Cut
5 mm
Shank Dia.
6 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Corner Chamfer Width at 45°
0.1 mm
Tolerance Nominal Diameter
f8
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.5 mm
Description
HPC milling cutters with newly developed high-performance coating for outstanding tool working life and optimum metal removal rates in a wide range of stainless steels. For use at high cutting speeds, particularly suitable even for steels up to approx. 1100 N/mm2. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 35 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 5 mm Overall length L: 50 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.1 mm Feed fz for slot milling in stainless steel > 900 N/mm2: 0.012 mm
