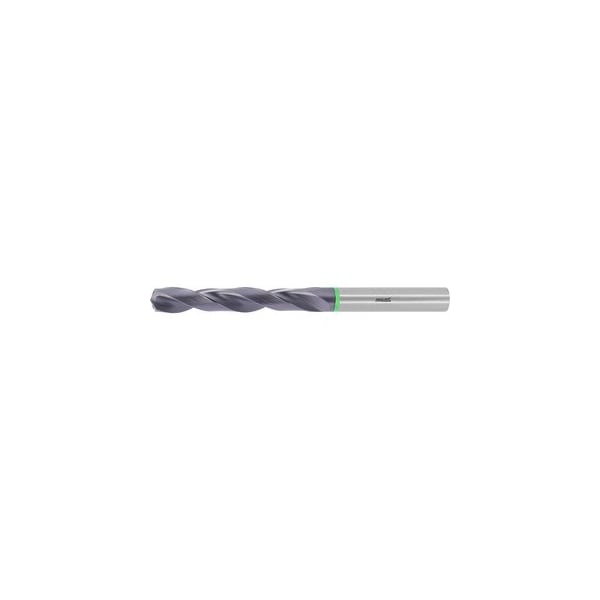

Pro Steel Solid Carbide Drill, 19 mm Dia, 140 Deg Point Angle, TiAlN Coated, Plain Shank
Mfr # 122776 19
Zoro # G209575009
product price: $302.99
/ea
Free Shipping & Returns
Key Features
Overall Length
153 mm
Drill Bit Size
19 mm
Point Angle
140 Degrees
Flute Length
101 mm
Shank Diameter
20 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
122776 19
Zoro #
G209575009
UPC #
4045197828316
Country of Origin
Germany
Dimensions
Overall Length
153 mm
Drill Bit Size
19 mm
Flute Length
101 mm
Shank Diameter
20 mm
Maximum Drilling Depth
72.5 mm
Flute length
101 mm
Diameter Tolerance
h7
Details
Item
Jobber Drill
Point Angle
140 Degrees
Number of Flutes
2
Material - Machining
Carbide
Finish - Machining
TiAlN
Coolant Through
Coolant Through with 25 Bar
Shank Type
DIN 6535 HA to h6
Standards
DIN 6537
Fastening Tool Material
Solid carbide
Number of Cutter Heads
2
Series
Pro Steel - 6×D
Type
Jobber drill
Semi-Standard
Yes
Machining Strategy
HPC
Feed in Steel
0.28 mm/rev.
Ring Color
Green
Description
Straight major cutting edges and a special flute profile ensure a good chip evacuation. The robust cutter geometry ensures high-performance drilling with good process reliability. A wide range of applications in steel materials thanks to a combination of tough ultra-fine grain carbide and an extremely wear-resistant coating. Up to dia 1.9 with 4 facets- from dia 2 with relieved cone. Note: Flute length LC = L2 + 1.5 x DC. Standard: DIN 6537 Tolerance nominal dia : h7 Number of cutting edges Z: 2 Tolerance nominal dia : h7 recommended maximum drilling depth L2: 72.5 mm Overall length L: 153 mm Shank dia Ds: 20 mm Feed f in steel < 900N/mm2: 0.28 mm/rev.
