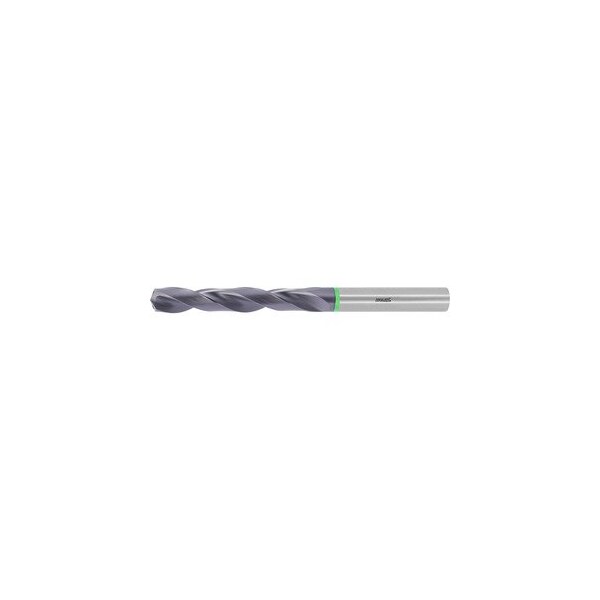

Pro Steel Solid Carbide Drill, 7.3mm Diameter, 140 Degrees Point Angle, TiAlN Coated, Plain Shank
Mfr # 122776 7,3
Zoro # G509195488
product price:Â
$
73.75
/ea
Key Features
Overall Length
91 mm
Drill Bit Size
7.3 mm
Point Angle
140 Degrees
Flute Length
53 mm
Shank Diameter
8 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 122776 7,3
- Zoro #
- G509195488
- UPC #
- 4045197827524
- Country of Origin
- Germany
Dimensions
- Overall Length
- 91 mm
- Drill Bit Size
- 7.3 mm
- Flute Length
- 53 mm
- Shank Diameter
- 8 mm
- Diameter Tolerance
- h7
- Maximum Drilling Depth
- 42.1 mm
- Flute length
- 53 mm
Details
- Item
- Jobber Drill
- Point Angle
- 140 Degrees
- Material - Machining
- Carbide
- Finish - Machining
- TiAlN
- Coolant Through
- Yes
- Shank Type
- DIN 6535 HA to h6
- Standards
- DIN 6537
- Features
- Semi-Standard with Green Coloured Ring, 4 Cutting edges of Pro Steel Series, Version 6xD
- Shank Type - Machining
- HPC
- Weight
- 0.1 lbs
- Machining Strategy
- HPC
- Feed in Steel
- 0.18 mm/rev.
- Number of Teeth
- 2
- Series
- Pro Steel - 6×D
- Ring Color
- Green
- Semi-Standard
- Yes
Description
Straight major cutting edges and a special flute profile ensure a good chip evacuation. The robust cutter geometry ensures high-performance drilling with good process reliability. A wide range of applications in steel materials thanks to a combination of tough ultra-fine grain carbide and an extremely wear-resistant coating. Up to dia 1.9 with 4 facets- from dia 2 with relieved cone.Note: Flute length LC = L2 + 1.5 x DC.Standard: DIN 6537Tolerance nominal dia: h7Number of cutting edges Z: 2recommended maximum drilling depth L2: 42.1 mmOverall length L: 91 mmShank dia Ds: 8 mmFeed f in steel < 900N/mm2: 0.18 mm/rev.
