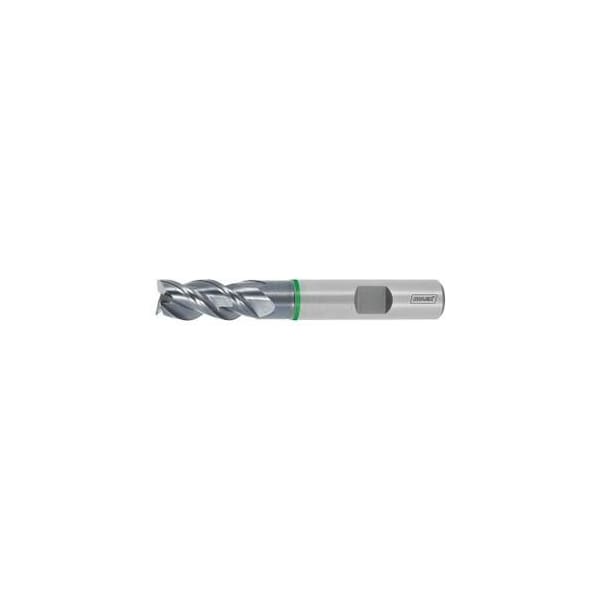

Pro Steel Solid Carbide End Mill, TiAlN Coated, 4 mm
Mfr # 202414 4
Zoro # G014383318
product price: $37.39
/eaKey Features
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Color Ring
green
Correction Factor Fz
2
Type of Product
End Mill
Milling Diameter
4 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202414 4
Zoro #
G014383318
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Milling Diameter
4 mm
Length of Cut
11 mm
Tolerance Nominal Diameter
0 / -0.03
Maximum Cutting Depth Ap Max When Slot Milling From Solid
2 mm
Shank Dia.
6 mm
Neck Dia.
3.8 mm
Overall Length
57 mm
Corner Chamfer Width at 45°
0.18 mm
Min. Cutting Depth
0.18 mm
Description
For roughing and finishing. Up to 1xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overhang length L1 incl. recess: 15 mm Recess Dia. D1: 3.8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm
