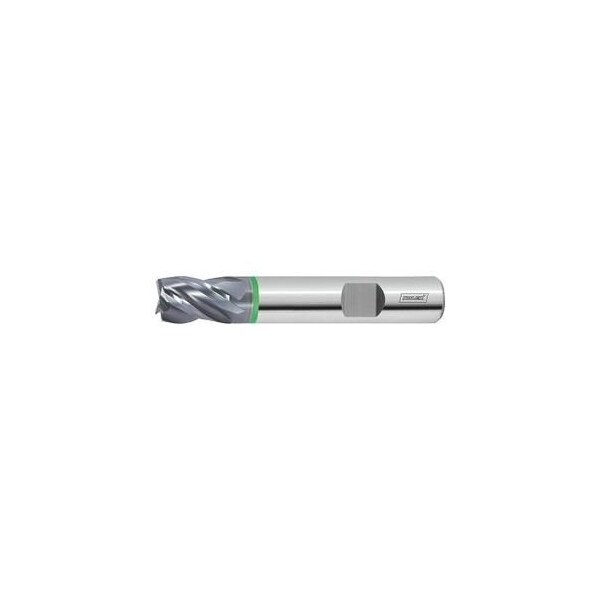

Pro Steel Solid Carbide End Mill, TiAlN Coated, 4 mm
Mfr # 203052 4
Zoro # G314383315
product price:Â
$
36.29
/ea
Key Features
Overall Length
54 mm
Milling Diameter
4 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 203052 4
- Zoro #
- G314383315
- UPC #
- -
- Country of Origin
- China
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Helix Angle
- 38 Degrees
- End Mill Material
- Carbide
- Series
- Pro Steel
- Cutting Direction
- horizontal, oblique and vertical
- Coolant Through
- No
- Type
- N
- Shank Type
- DIN 6535 HB to h6
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.025 mm
- Shank Tolerance
- h6
- Correction Factor Fz
- 2
- Color Ring
- green
- Type of Product
- End Mill
- Standard
- DIN 6527
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.02 mm
- Corner Chamfer Angle
- 45 Degrees
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.025 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.02 mm
Description
For roughing and finishing. Up to 1xD into solid material at very high feed rates with smooth cutting action. At maximum machining depths, ensure compliance with the ratio dimension LC cutting length / Dia. DC cutting Dia.! Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 8 mm Overall length L: 54 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.18 mm Feed fz for slot milling in steel < 900 N/mm2: 0.02 mm
