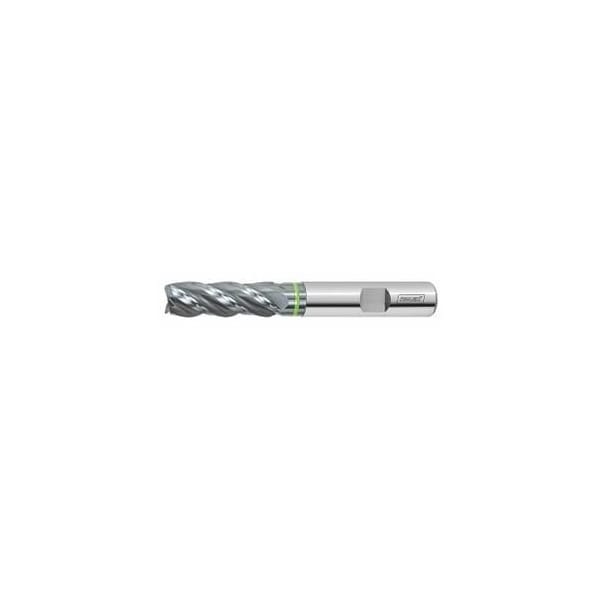

Pro Steel Solid Carbide End Mill, TiAlN Coated, 8 mm
Mfr # 203058 8
Zoro # G714383397
product price:Â
$
81.99
/ea
Key Features
Milling Diameter
8 mm
Number of Flutes
4
End Mill Style
Chamfer
Length of Cut
24 mm
End Mill Cutting Type
HPC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 203058 8
- Zoro #
- G714383397
- UPC #
- -
- Country of Origin
- China
- Number of Flutes
- 4
- End Mill Style
- Chamfer
- Finish
- TiAlN
- End Mill Cutting Type
- HPC
- Corner Chamfer Angle
- 45 Degrees
- Type of Product
- End Mill
- Correction Factor Fz
- 2
- Color Ring
- green
- Feed Fz For Slot Milling in Steel < 900Â N/mm2
- 0.05 mm
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.06 mm
- Shank Tolerance
- h6
- End Mill Material
- Carbide
- Helix Angle
- 38 Degrees
- Shank Type
- DIN 6535 HB to h6
- Coolant Through
- No
- Cutting Direction
- horizontal, oblique and vertical
- Type
- N
- Series
- Pro Steel
- Overall Reach
- 30 mm
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.06 mm
- Feed Fz For Slot Milling in Steel < 900 N/mm2
- 0.05 mm
Description
For roughing and finishing. Up to 0.7xD into solid material at very high feed rates with smooth cutting action. Advantage: optimized flute form, eccentric relief ground, generous chip spaces. Tolerance nominal Dia. 0 / -0.03 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 24 mm Overhang length L1 incl. recess: 30 mm Recess Dia. D1: 7.5 mm Overall length L: 68 mm Shank Dia. Ds: 8 mm
