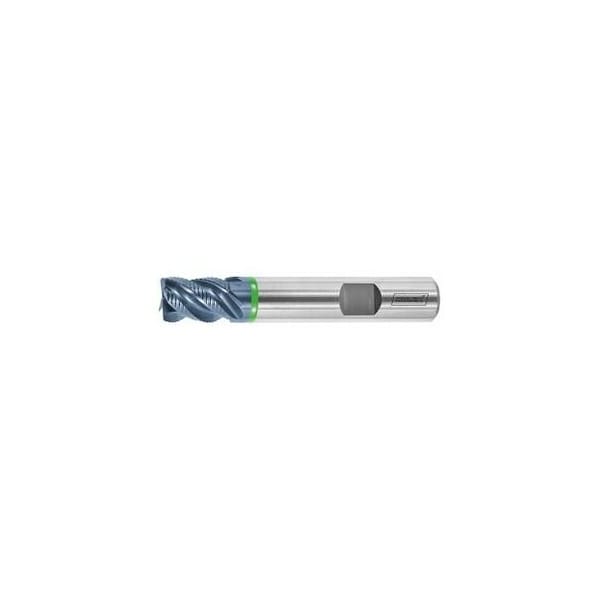

Pro Steel Solid Carbide Roughing End Mill, TiAlN Coated, 4 mm
Mfr # 205704 4
Zoro # G014380751
product price:Â
$
50.99
/ea
Key Features
Milling Diameter
4 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 205704 4
- Zoro #
- G014380751
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Milling Diameter
- 4 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle form profile for roughing. Very high metal removal rate. Application: For roughing machining, particularly suitable for full-slot machining. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 8 mm Overall length L: 54 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.2 mm Feed fz for slot milling in steel < 900 N/mm2: 0.02 mm
