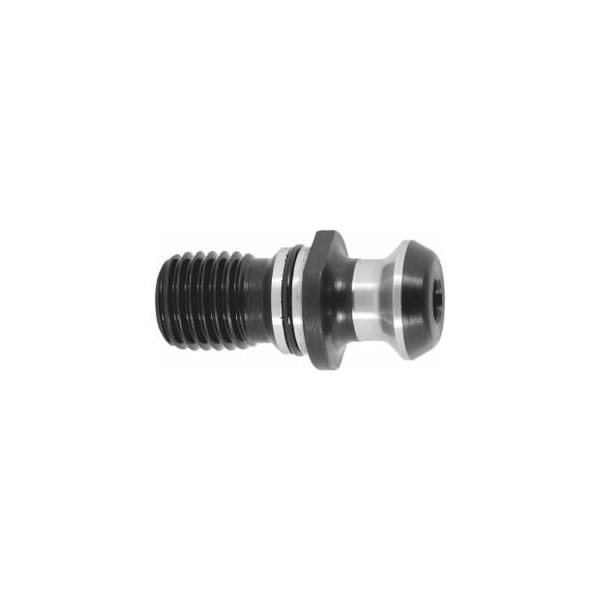

Pull Stud, Sealed, with Bore, Suitable for Steep Tapers: 40

Description: The toolholder is securely pulled into the spindle by the spindle's clamping gripper using the pull stud. Pull studs come in different versions. They are an important link between the machine and tool. Stringent requirements apply for the accuracy, strength and reliability of pull studs. Application: For tools with taper shanks see also DIN 69871 and JIS B 6339 MAS-BT. In machining Centers machines with automatic tool changers. In NC machines machines without automatic tool changers. Suitable for: FADAL, similar to ISO 7388, 3 mm, extended. Note: Look in the eShop - you will find the right clamping wrench and width for every job. When installing the pull stud, cheque the correct tightening torque. Sealed with O-ring. No suitable chuck key available. Pull stud standard: ISO 7388-3 Collar Dia D: 22 mm Head Dia D1: 18.95 mm Overall length L: 47.5 mm L1: 19.25 mm Thread M: M16 maximum tightening torque: 50 Nm
