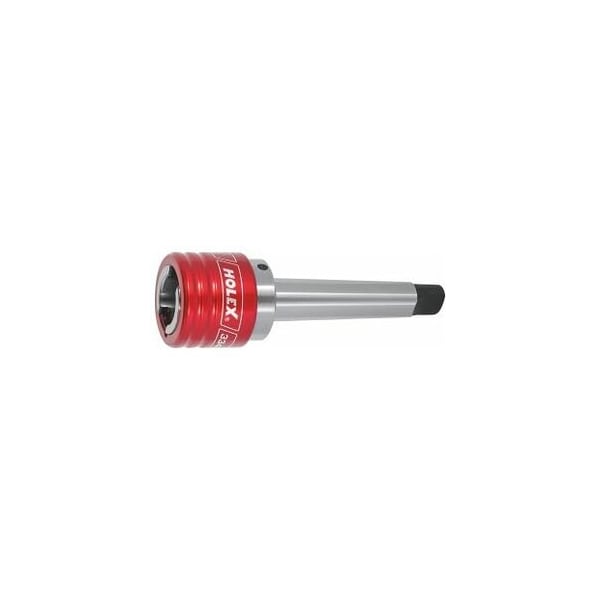

Quick-Change Tapping Chuck, MT2, Tapping Range: M3-12
Mfr # 334644 M3-12
Zoro # G314777046
product price: $218.99
/ea
Free Shipping & Returns
Key Features
Taper Size
MT2
Tapping Range
M3 − M12
Length Compensation By Tension
7.5 mm
Projection
46 mm
Internal Dia.
19 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
334644 M3-12
Zoro #
G314777046
UPC #
-
Country of Origin
India
Dimensions
Taper Size
MT2
Length Compensation By Tension
7.5 mm
Internal Dia.
19 mm
Outside Dia.
38 mm
Length Compensation By Compression
7.5 mm
Details
Tapping Range
M3 − M12
Item
Tapping head
Projection
46 mm
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Morse taper DIN 228 B. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: See No. 335420 335660 for quick-change tapping collets. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 38 mm Internal Dia D1: 19 mm Overhang dimension A: 46 mm
