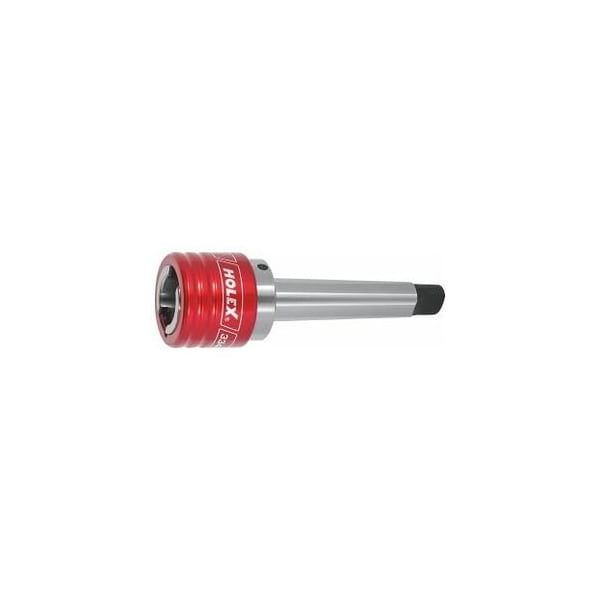

Quick-Change Tapping Chuck, MT3, Tapping Range: M3-12
Mfr # 334645 M3-12
Zoro # G414777038
product price:Â $224.99
/ea
Free Shipping & Returns
Key Features
Length Compensation By Compression
7.5 mm
Taper Size
MT3
Projection
46 mm
Outside Dia.
38 mm
Tapping Range
M3 − M12
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 334645 M3-12
- Zoro #
- G414777038
- UPC #
- -
- Country of Origin
- India
Dimensions
- Length Compensation By Compression
- 7.5 mm
- Taper Size
- MT3
- Outside Dia.
- 38 mm
- Internal Dia.
- 19 mm
- Length Compensation By Tension
- 7.5 mm
Details
- Projection
- 46 mm
- Tapping Range
- M3 − M12
- Item
- Tapping head
Description
Compact design, with flexible length compensation by compression and tension. Adjustable lead-in pressures for different materials and taps. Morse taper DIN 228 B. Application: To produce threads that are true to gage. For right-hand and left-hand thread. For NC machines and machining Centers. Optional extras: For quick-change tapping collets see No. 335420 335660. Note: Quick-change tapping heads in other shank types size M14 M33 available on request. Quick-change tapping heads not suitable for internal coolant supply. Length compensation by compression: 7.5 mm Length compensation by tension: 7.5 mm External Dia D: 38 mm Internal Dia D1: 19 mm Overhang dimension A: 46 mm
