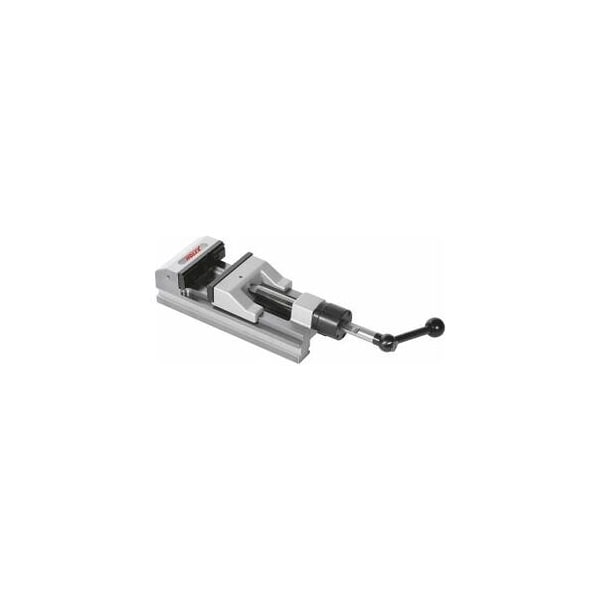

Quick-Release Vise for One-Hand Use, Jaw Width: 135mm

Quick adjustment of the movable jaws. Jaws through hardened and ground. Time-consuming cranking not necessary. Precise clamping due to long flat guide. Clamping of component with just one hand. One jaw with horizontal and vertical prismatic profiles for round material, one jaw smooth. Both jaws are stepped at the top to clamp flat parts. With two side support faces. Positive locking. Application: For quick clamping of components on drilling machines and measuring machines. Material: Body and movable jaw made of sturdy special cast iron. Accuracy: Within 0.03 mm. Clamping range b: 160 mm Jaw height C: 40 mm Base body length a: 365 mm Base body width B: 138 mm Overall height c: 80.5 mm maximum overall length L4: 587 mm
