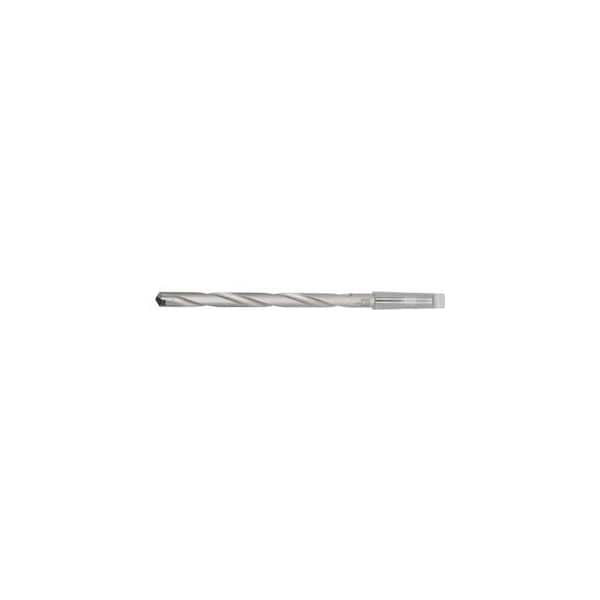

Replaceable Tip Drill with MT Shank, 8XD, Diameter Range: 13 mm - 17.5 mm
Mfr # 232265 13
Zoro # G715355409
product price:Â
$
455.99
/ea
Free Shipping & Returns
Key Features
Diameter
20 mm
Series
Power Drill
Machining Strategy
HPC
Point Angle
180 Deg
Size
17
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 232265 13
- Zoro #
- G715355409
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Diameter
- 20 mm
- Size
- 17
- Depth Limit (Indexable Drill)
- 5 x D
- Shank Length
- 50 mm
- Reach Length
- 85 mm
Details
- Item
- Indexable Drill
- Series
- Power Drill
- Machining Strategy
- HPC
- Point Angle
- 180 Deg
- Type
- 13
- Max. Adjustment Limit
- 0.25 mm
- Coolant Through
- Yes
- Shank
- ISO 9766
- No. of Cutting Edges
- 1
- Overhang
- 102 mm
Description
For holes up to IT10 accuracy. Note: Further sizes available on request. For suitable reducing adapters for tools with MT shanks see No. 343000-343530. Reduce feed rates f by 5% and vc values by 10%. Through-coolant: no Number of cutting edges Z: 2 Dia. range Dc: 13 17.5 mm Reach L1: 114.3 mm Morse taper MT size: 2 Clamping screws: 232990 TX8
