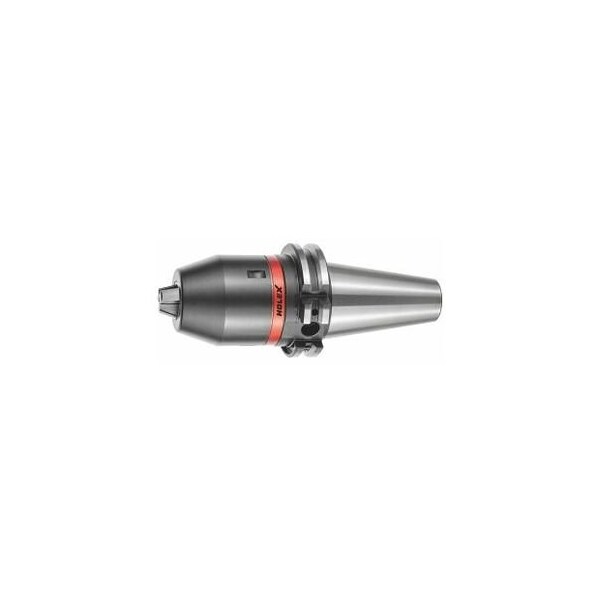

Short Drill Chuck, Form A, SK 40, Clamping Range: 2.5-16mm
Mfr # 301565 2,5-16
Zoro # G214775142
product price: $418.99
/ea
Free Shipping & Returns
Key Features
Spare Torx Chuck Key No. 625220
TX25
Balluffchip Bore
Yes
Projection
80 mm
Balance Quality
G 6.3 at 15,000 rpm
Outside Dia.
50 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
301565 2,5-16
Zoro #
G214775142
UPC #
-
Country of Origin
Spain
Dimensions
Outside Dia.
50 mm
Clamping Dia.
2.5 mm
Taper Size
SK40
Details
Item
Short drill chuck
Spare Torx Chuck Key No. 625220
TX25
Balluffchip Bore
Yes
Projection
80 mm
Balance Quality
G 6.3 at 15,000 rpm
Standards
ISO 7388-1
Concentricity
≤ 50 µm
Max. Tightening Torque
≤ 14 N·m
Shape
A
Description
For clockwise and anticlockwise rotation. Burnished. With Balluff/RFID chip bore. Supplied with: Torx chuck key with T-handle for high clamping force. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Overhang dimension A: 80 mm External Dia D: 50 mm Spare Torx chuck key No. 625220: TX25
