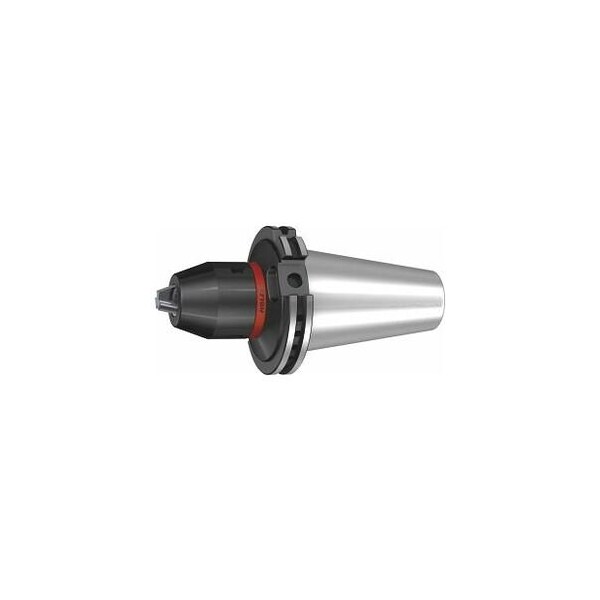

Short Drill Chuck, Form A, SK50, Clamping Range: 2.5-16mm
Mfr # 301575 2,5-16
Zoro # G914775459
product price: $536.99
/ea
Free Shipping & Returns
Key Features
Projection
80 mm
Standards
ISO 7388-1
Outside Dia.
50 mm
Max. Tightening Torque
≤ 14 N·m
Taper Size
SK50
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
301575 2,5-16
Zoro #
G914775459
UPC #
-
Country of Origin
Spain
Dimensions
Outside Dia.
50 mm
Taper Size
SK50
Clamping Dia.
2.5 mm
Details
Item
Short drill chuck
Projection
80 mm
Standards
ISO 7388-1
Max. Tightening Torque
≤ 14 N·m
Balluffchip Bore
Yes
Spare Torx Chuck Key No. 625220
TX25
Balance Quality
G 6.3 at 15,000 rpm
Concentricity
≤ 50 µm
Shape
A
Description
For clockwise and anticlockwise rotation. Burnished. With Balluff/RFID chip bore. Supplied with: Torx chuck key with T-handle for high clamping force. Optional extras: Pull studs PS No. 308600 308806. Pull stud wrenches No. 308820, 308835. maximum tightening torque Md max: 14 Nm Overhang dimension A: 80 mm External Dia D: 50 mm Spare Torx chuck key No. 625220: TX25
