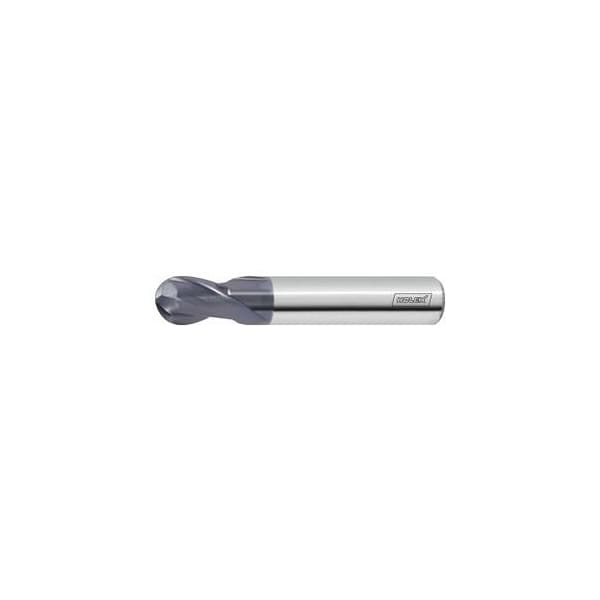

Solid Carbide Ball Nose End Mill, TiAlN Coated, 2 mm
Mfr # 207125 2
Zoro # G414381594
product price: $26.75
/eaKey Features
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Corner Radius
1 mm
Helix Angle
30 Degrees
Number of Flutes
2
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
207125 2
Zoro #
G414381594
UPC #
-
Country of Origin
China
Dimensions
Corner Radius
1 mm
Min. Cutting Depth
0.01 mm
Milling Diameter
2 mm
Overall Length
50 mm
Shank Dia.
6 mm
Maximum Cutting Depth Ap Max When Side Milling
5 mm
Tolerance Nominal Diameter
h10
Length of Cut
5 mm
Maximum Cutting Depth Ap Max When Copying
0.1 mm
Details
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Helix Angle
30 Degrees
Number of Flutes
2
End Mill Style
Ball
Feed Fz For Copy Milling in Steel < 900 N/mm2
0.013 mm
Type
N
Correction Factor Fz
1.25
Shank Tolerance
h6
Coolant Through
No
Finish
TiAlN
Color Ring
without
Shank Type
DIN 6535 HA to h6
Feed Fz For Side Milling in Steel < 900 N/mm2
0.011 mm
Type of Product
Ball-nosed slot drill
Description
Solid carbide ball nose slot drill 2 mmNo. of teeth Z: 2 Helix angle: 30 degrees No. of teeth Z: 2 Flute length Lc: 5 mm Overall length L: 50 mm Shank Dia. Ds: 6 mm Feed fz for side milling in steel < 900 N/mm2: 0.011 mm Feed fz for copy milling in steel < 900 N/mm2: 0.013 mm
