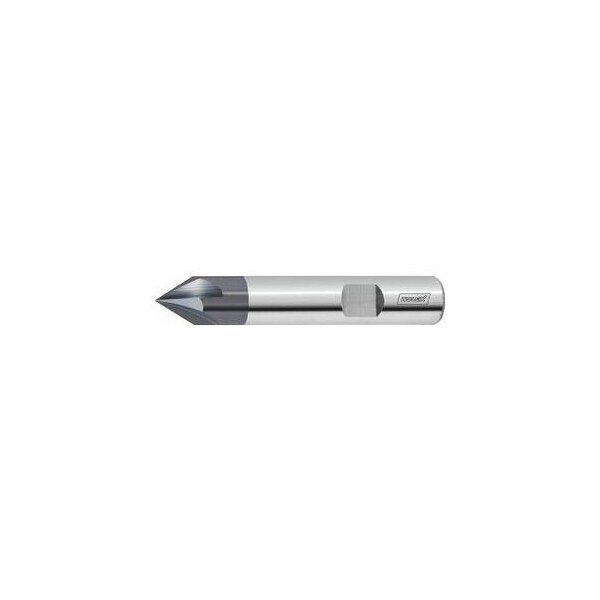

Solid Carbide Deburring Mill, 60 Deg, TiAlN Coated, 8 mm
Mfr # 208161 8
Zoro # G714391767
product price:
$
63.45
/ea
Key Features
Type
N
Overall Length
59 mm
Finish
TiAlN
Maximum Cutting Depth Ap Max When Side Milling
7.9 mm
Correction Factor Fz
1.25
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 208161 8
- Zoro #
- G714391767
- UPC #
- -
- Country of Origin
- Germany
- Type
- N
- Finish
- TiAlN
- Correction Factor Fz
- 1.25
- Chamfer Mill
- 30 Degrees
- Corner Chamfer Angle
- 60 Degrees
- Feed Fz in Steel < 900 N/mm2
- 0.04 mm
- Color Ring
- without
- Shank Tolerance
- h6
- Type of Product
- Deburrers
- Cutting Direction
- horizontal and oblique
- Shank Type
- DIN 6535 HB to h6
- End Mill Style
- Drill Point
- Countersink Angle
- 60 Degrees
- Coolant Through
- No
- Number of Flutes
- 4
- End Mill Material
- Carbide
- Feed Fz in Steel < 900 N/mm2
- 0.04 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 4 Shank: DIN 6535 HB to h6 Chamfer mill: 30 degrees No. of teeth Z: 4 Dimension S: 7.9 mm Overall length L: 59 mm Shank Dia. Ds: 8 mm Feed fz in steel < 900 N/mm2: 0.04 mm
