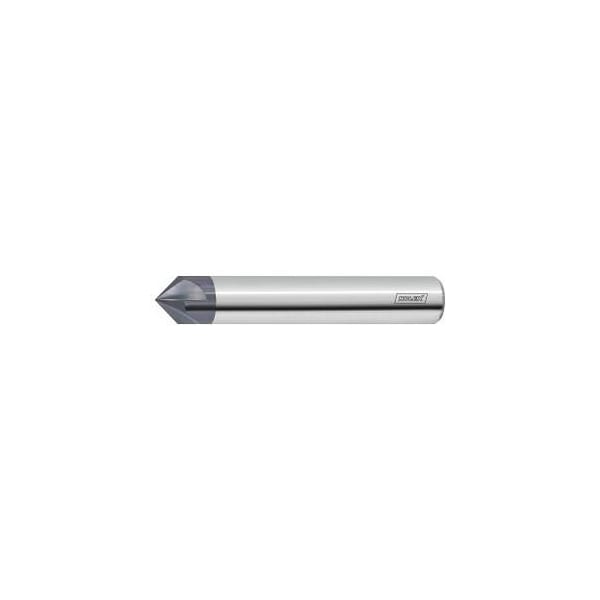

Solid Carbide Deburring Mill, 90 Deg, TiAlN Coated, 2 mm
- Mfr # 208107 2
- Zoro # G514391776
product price:
$
25.99
/ea
Key Features
Type
N
Overall Length
38 mm
Finish
TiAlN
Maximum Cutting Depth Ap Max When Side Milling
1.4 mm
Type of Product
Deburrers
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 208107 2
- Zoro #
- G514391776
- UPC #
- -
- Country of Origin
- Germany
- Type
- N
- Finish
- TiAlN
- Type of Product
- Deburrers
- Color Ring
- without
- Correction Factor Fz
- 1.25
- Feed Fz in Steel < 900 N/mm2
- 0.01 mm
- Shank Tolerance
- h6
- Corner Chamfer Angle
- 45 Degrees
- Chamfer Mill
- 45 Degrees
- End Mill Style
- Chamfer
- Number of Flutes
- 3
- Cutting Direction
- horizontal and oblique
- Countersink Angle
- 90 Degrees
- End Mill Material
- Carbide
- Coolant Through
- No
- Shank Type
- DIN 6535 HA with h6
- Feed Fz in Steel < 900 N/mm2
- 0.01 mm
Dimensions
- Overall Length
- 38 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 1.4 mm
- Tolerance Nominal Diameter
- h6
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1.4 mm
- Min. Cutting Depth
- 0.01 mm
- Dimension S
- 1.4 mm
- Shank Dia.
- 3 mm
- Milling Diameter
- 2 mm
Description
Tolerance: Dimension S = ±0.1 mm, point angle ±10 arc minutes. Application: Perfectly suitable for chamfering and deburring component edges and for contouring applications. No. of teeth Z: 3 Shank: DIN 6535 HA with h6 Chamfer mill: 45 degrees No. of teeth Z: 3 Dimension S: 1.4 mm Overall length L: 38 mm Shank Dia. Ds: 3 mm Feed fz in steel < 900 N/mm2: 0.01 mm
