Shop HOLEX

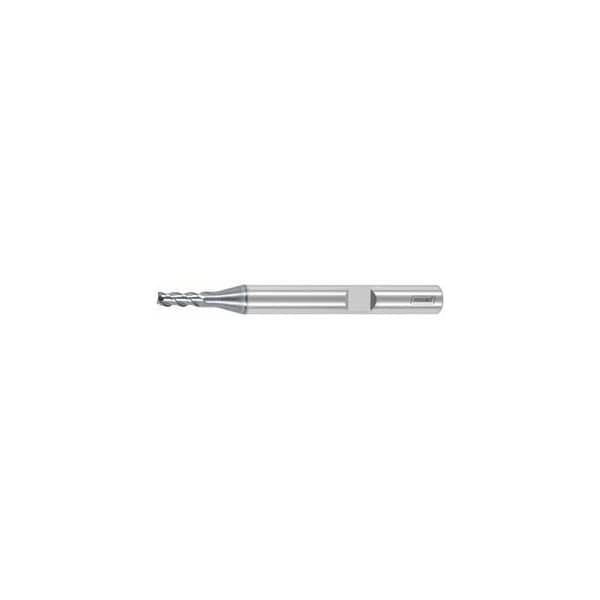

Solid Carbide End Mill, AlCrN Coated, 4 mm

  • Mfr # 202296 4

  • Zoro # G214385235

product price:
$
30.75
/ea

Key Features

Milling Diameter
4 mm
Overall Length
57 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
202296 4
Zoro #
G214385235
UPC #
-
Country of Origin
China
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Coolant Through
No
Shank Type
DIN 6535 HB to h6
Helix Angle
45 Degrees
Type
N
End Mill Material
Carbide
Cutting Direction
horizontal, oblique and vertical
Shank Form
HB
Standard
DIN 6527
Corner Chamfer Angle
45 Degrees
Feed Fz For Side Milling in Steel < 750 N/mm2
0.025 mm
Correction Factor Fz
1.25
Type of Product
End Mill
Color Ring
without
Feed Fz For Side Milling in Steel < 750 N/mm2
0.025 mm

Description

Dimensions similar to DIN 6527. Improved coating for general-purpose applications in steel and cast iron. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Shank form: HB Corner chamfer width at 45 Deg: 0.18 mm
