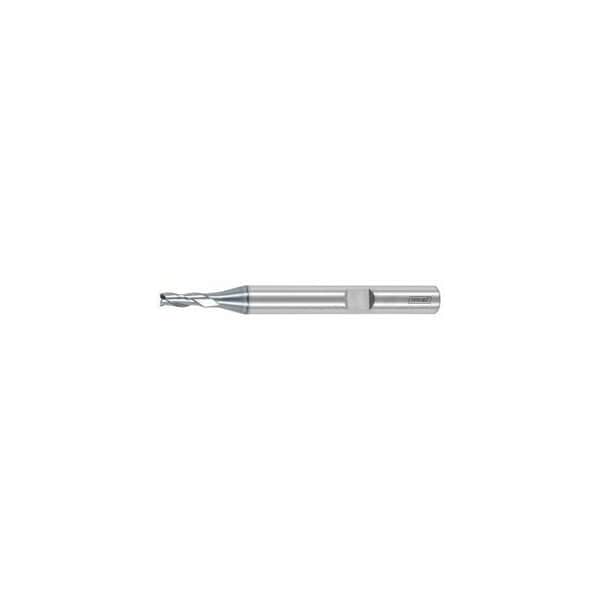

Solid Carbide End Mill, AlCrN Coated, 5 mm
Mfr # 202275 5
Zoro # G614384272
product price:Â $26.85
/eaKey Features
Overall Length
57 mm
Milling Diameter
5 mm
Number of Flutes
3
End Mill Style
Chamfer
Finish
AlCrN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202275 5
- Zoro #
- G614384272
- UPC #
- -
- Country of Origin
- China
Dimensions
- Overall Length
- 57 mm
- Milling Diameter
- 5 mm
- Length of Cut
- 13 mm
- Min. Cutting Depth
- 0.3 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 13 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 5 mm
- Corner Chamfer Width at 45°
- 0.2 mm
- Tolerance Nominal Diameter
- e8
- Shank Dia.
- 6 mm
Description
Dimensions similar to DIN 6527. Improved coating for general-purpose applications in steel and cast iron. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.2 mm Feed fz for slot milling in steel < 750 N/mm2: 0.03 mm
