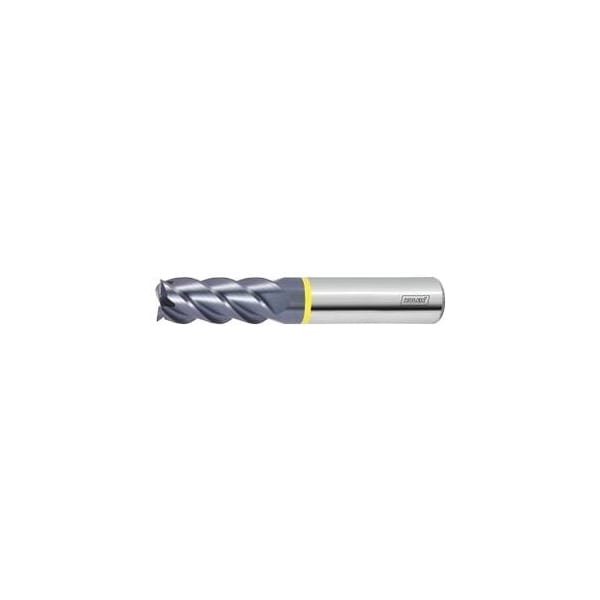

Solid Carbide End Mill for Aluminum, TiAlN Coated, 4 mm
- Mfr # 202545 4
- Zoro # G014383646
product price:Â
$
55.99
/ea
Key Features
Milling Diameter
4 mm
Overall Length
57 mm
Number of Flutes
4
End Mill Style
Square
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202545 4
- Zoro #
- G014383646
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 4 mm
- Overall Length
- 57 mm
- Length of Cut
- 13 mm
- Shank Dia.
- 6 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 2 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 13 mm
- Tolerance Nominal Diameter
- e8
Details
- Number of Flutes
- 4
- End Mill Style
- Square
- Finish
- TiAlN
- Cutting Direction
- horizontal, oblique and vertical
- Shank Type
- DIN 6535 HA to h6
- Coolant Through
- No
- Type
- W
- Helix Angle
- 45 Degrees
- End Mill Material
- Carbide
- Feed Fz For Slot Milling in Short-Chipping Aluminium
- 0.015 mm
- Type of Product
- End Mill
- Color Ring
- yellow
- Shank Tolerance
- h6
- Standard
- DIN 6527
- Correction Factor Fz
- 3
- Corner Chamfer Angle
- 90 Degrees
Description
Extra sharp cutting edges. Dimensions similar to DIN 6527. Eccentric relief ground. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 4 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Feed fz for slot milling in short-chipping aluminium: 0.015 mm Feed fz for side milling in short-chipping aluminium: 0.025 mm
