  11. Solid Carbide End Mill for Aluminum, Uncoated, 6 mm

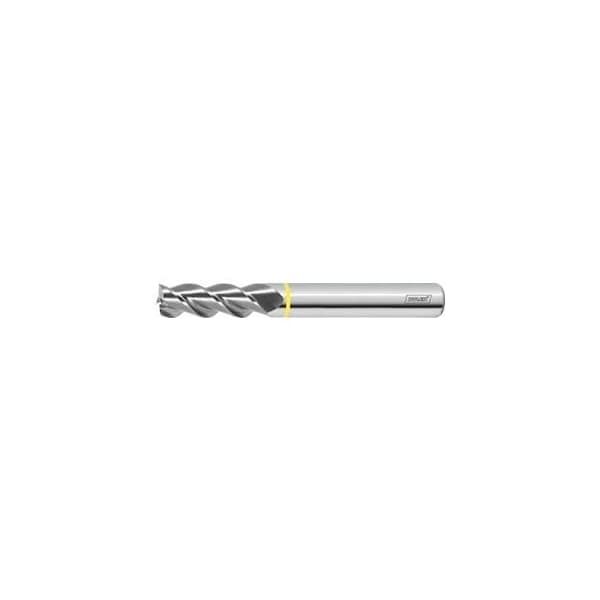

Holex Solid Carbide End Mill for Aluminum, Uncoated, 6 mm 202242 6 - main

Solid Carbide End Mill for Aluminum, Uncoated, 6 mm

  • Mfr # 202242 6

  • Zoro # G314383339

product price: $38.45
/ea

Key Features

Tolerance Nominal Diameter
e8
Feed Fz For Slot Milling in Short-Chipping Aluminium
0.025 mm
Maximum Cutting Depth Ap Max When Side Milling
18 mm
Correction Factor Fz
3
Corner Chamfer Angle
90 Degrees
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
202242 6
Zoro #
G314383339
UPC #
-
Country of Origin
Germany

Dimensions

Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
18 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
6 mm
Min. Cutting Depth
0.01 mm
Overall Length
65 mm
Length of Cut
18 mm
Milling Diameter
6 mm
Shank Dia.
6 mm

Details

Feed Fz For Slot Milling in Short-Chipping Aluminium
0.025 mm
Correction Factor Fz
3
Corner Chamfer Angle
90 Degrees
Type of Product
End Mill
Color Ring
yellow
Finish
uncoated
Coolant Through
No
Type
W
Cutting Direction
horizontal, oblique and vertical
End Mill Style
Square
Number of Flutes
3
Shank Type
DIN 6535 HA to h6
End Mill Material
Carbide
Helix Angle
45 Degrees

Description

Eccentric relief ground, additionally finish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Application: For roughing and finishing. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 18 mm Overall length L: 65 mm Shank Dia. Ds: 6 mm Feed fz for slot milling in short-chipping aluminium: 0.025 mm Feed fz for side milling in short-chipping aluminium: 0.03 mm
