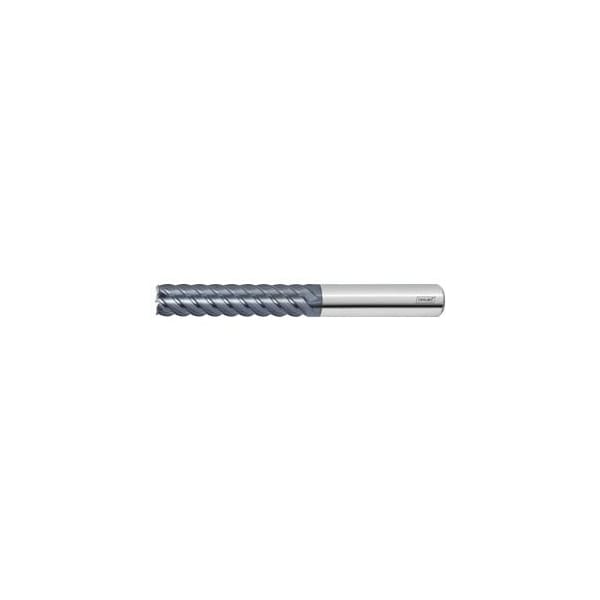

Solid Carbide End Mill, TiAlN Coated, 16 mm
- Mfr # 203620 16
- Zoro # G014383257
product price:Â
$
327.99
/ea
Free Shipping & Returns
Key Features
Milling Diameter
16 mm
Overall Length
130 mm
Number of Flutes
6
End Mill Style
Square
Finish
TiAlN
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 203620 16
- Zoro #
- G014383257
- UPC #
- -
- Country of Origin
- China
Dimensions
- Milling Diameter
- 16 mm
- Overall Length
- 130 mm
- Length of Cut
- 66 mm
- Shank Dia.
- 16 mm
- Tolerance Nominal Diameter
- h10
- Maximum Cutting Depth Ap Max When Side Milling
- 66 mm
- Min. Cutting Depth
- 0.01 mm
- Cutting Width Ae for Milling Operation
- 0.05×D for side milling
Details
- Number of Flutes
- 6
- End Mill Style
- Square
- Finish
- TiAlN
- Type
- N
- End Mill Material
- Carbide
- Cutting Direction
- horizontal
- Shank Type
- DIN 6535 HA to h6
- Coolant Through
- No
- Helix Angle
- 45 Degrees
- Type of Product
- End Mill
- Correction Factor Fz
- 1.25
- Feed Fz For Side Milling in Steel < 900Â N/mm2
- 0.089 mm
- Color Ring
- without
- Corner Chamfer Angle
- 90 Degrees
- Shank Tolerance
- h6
- Feed Fz For Side Milling in Steel < 900 N/mm2
- 0.089 mm
Description
For finishing operations. Special geometry for optimum chip evacuation. For profile milling as a finishing operation. Very sturdy version with strengthened core. Application: Very suitable for large depths of cut. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 66 mm Overall length L: 130 mm Shank Dia. Ds: 16 mm Feed fz for side milling in steel < 900 N/mm2: 0.089 mm
