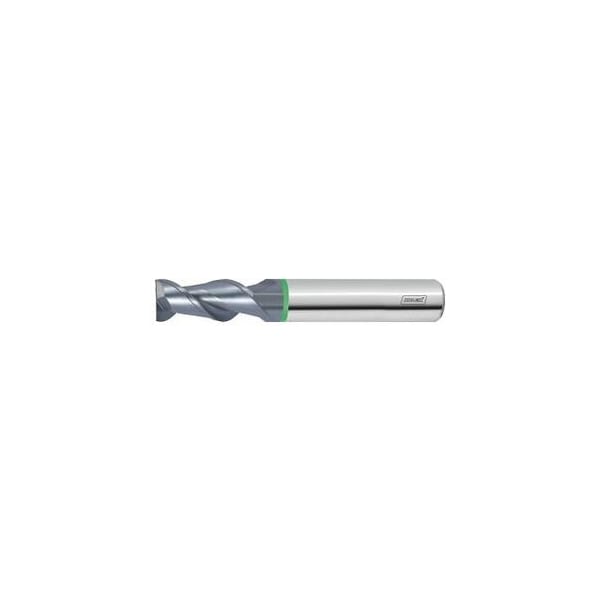

Solid Carbide End Mill, TiAlN Coated, 3 mm
Mfr # 201650 3
Zoro # G414381433
product price:Â $21.79
/eaKey Features
Milling Diameter
3 mm
Overall Length
57 mm
Number of Flutes
2
End Mill Style
Chamfer
Finish
TiAlN
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 201650 3
- Zoro #
- G414381433
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 3 mm
- Overall Length
- 57 mm
- Length of Cut
- 8 mm
- Shank Dia.
- 6 mm
- Min. Cutting Depth
- 0.3 mm
- Tolerance Nominal Diameter
- h10
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 1.5 mm
- Maximum Cutting Depth Ap Max When Side Milling
- 8 mm
- Corner Chamfer Width at 45°
- 0.1 mm
Description
Eccentric relief ground for stronger cutting edges. Dimensions similar to DIN 6527. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 2 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 2 Flute length Lc: 8 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.1 mm Feed fz for slot milling in steel < 750 N/mm2: 0.01 mm
