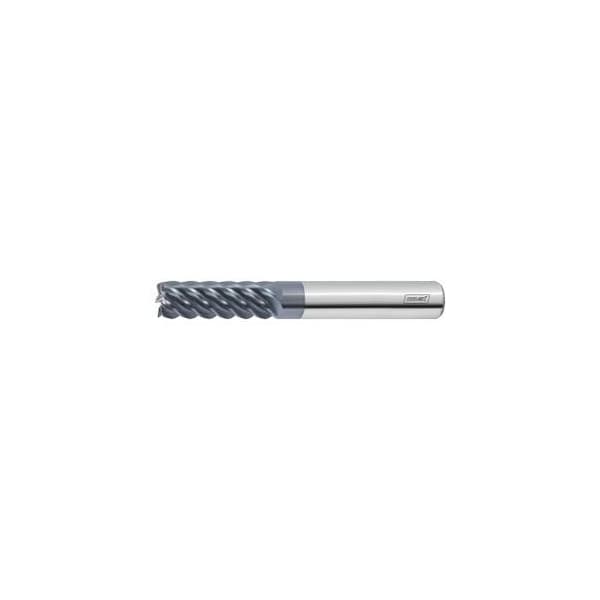

Solid Carbide End Mill, TiAlN Coated, 3 mm
Mfr # 203610 3
Zoro # G314382851
product price: $29.59
/eaKey Features
Corner Chamfer Angle
45 Degrees
Color Ring
without
Feed Fz For Side Milling in Steel < 900 N/mm2
0.016 mm
Tolerance Nominal Diameter
h10
Type of Product
End Mill
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
203610 3
Zoro #
G314382851
UPC #
-
Country of Origin
Germany
Dimensions
Tolerance Nominal Diameter
h10
Maximum Cutting Depth Ap Max When Side Milling
10 mm
Corner Chamfer Width at 45°
0.05 mm
Min. Cutting Depth
0.1 mm
Cutting Width Ae for Milling Operation
0.05×D for side milling
Milling Diameter
3 mm
Length of Cut
10 mm
Shank Dia.
6 mm
Overall Length
62 mm
Description
High stability and extremely smooth cutting action due to at least 6 teeth. Eccentric relief ground. For profile milling as a finishing operation. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 6 Helix angle: 45 degrees Direction of infeed: horizontal Shank: DIN 6535 HA to h6 No. of teeth Z: 6 Flute length Lc: 10 mm Overall length L: 62 mm Shank Dia. Ds: 6 mm Corner chamfer width at 45 Deg: 0.05 mm Feed fz for side milling in steel < 900 N/mm2: 0.016 mm
