Shop HOLEX

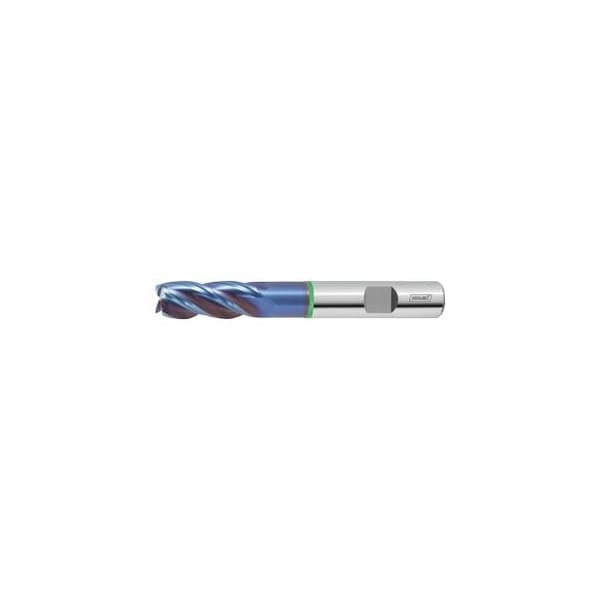

Solid Carbide End Mill, TiXSi Coated, 16 mm

  • Mfr # 203047 16
  • Zoro # G014382588
product price:
$
260.99
/ea
Free Shipping & Returns

Key Features

Overall Length
108 mm
Milling Diameter
16 mm
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiXSi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
203047 16
Zoro #
G014382588
UPC #
-
Country of Origin
Germany
Number of Flutes
4
End Mill Style
Chamfer
Finish
TiXSi
End Mill Cutting Type
HPC
Correction Factor Fz
2
Shank Tolerance
h6
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.08 mm
Type of Product
End Mill
Feed Fz For Side Milling in Steel < 900 N/mm2
0.1 mm
Color Ring
green
Corner Chamfer Angle
45 Degrees
Shank Type
DIN 6535 HB to h6
Type
N
Coolant Through
No
Cutting Direction
horizontal, oblique and vertical
Overall Reach
58 mm
Helix Angle
38 Degrees
End Mill Material
Carbide
Feed Fz For Side Milling in Steel < 900 N/mm2
0.1 mm
Feed Fz For Slot Milling in Steel < 900 N/mm2
0.08 mm

Description

For roughing and finishing. Up to 0.7xD into solid material at very high feed rates with smooth cutting action. Without dynamic twist pitch. Advantage: optimized flute form, eccentric relief ground, wide chip space. Tolerance nominal Dia. f8 No. of teeth Z: 4 Helix angle: 38 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 48 mm Overhang length L1 incl. recess: 58 mm Recess Dia. D1: 15.5 mm Overall length L: 108 mm Shank Dia. Ds: 16 mm
