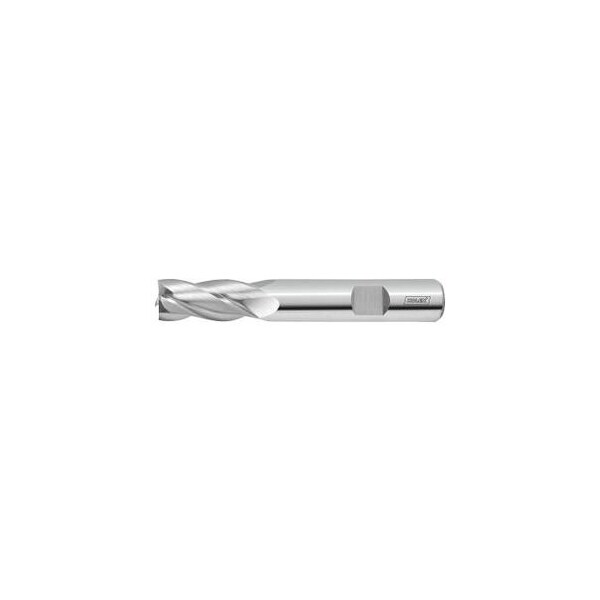

Solid Carbide End Mill, Uncoated, 16 mm
Mfr # 202680 16
Zoro # G714384332
product price:Â $136.99
/ea
Free Shipping & Returns
Key Features
Overall Length
93 mm
Milling Diameter
16 mm
Number of Flutes
4
End Mill Style
Square
Finish
uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
202680 16
Zoro #
G714384332
UPC #
-
Country of Origin
Germany
Dimensions
Overall Length
93 mm
Milling Diameter
16 mm
Length of Cut
35 mm
Tolerance Nominal Diameter
e8
Min. Cutting Depth
0.01 mm
Maximum Cutting Depth Ap Max When Side Milling
35 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
8 mm
Shank Dia.
16 mm
Description
Eccentric relief ground. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 4 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 35 mm Overall length L: 93 mm Shank Dia. Ds: 16 mm Shank form: HB Feed fz for slot milling in steel < 900 N/mm2: 0.08 mm
