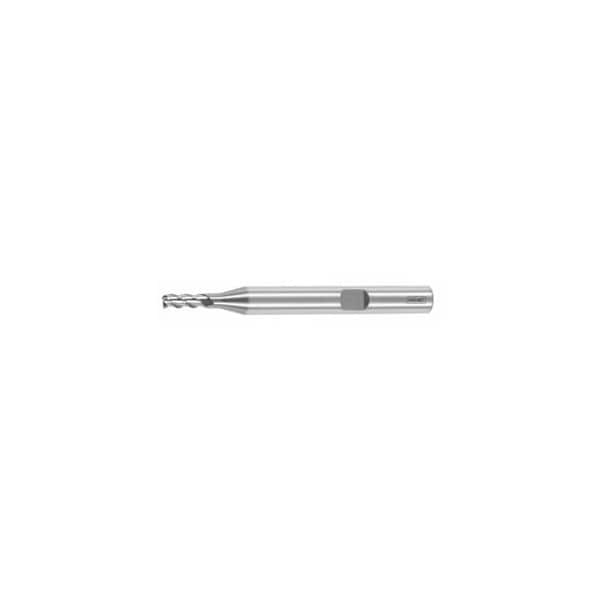

Solid Carbide End Mill, Uncoated, 5 mm
Mfr # 202299 5
Zoro # G014380935
product price: $23.15
/eaKey Features
Coolant Through
No
End Mill Material
Carbide
Number of Flutes
3
End Mill Style
Chamfer
Length of Cut
13 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202299 5
Zoro #
G014380935
UPC #
-
Country of Origin
China
Dimensions
Length of Cut
13 mm
Milling Diameter
5 mm
Shank Dia.
6 mm
Overall Length
57 mm
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
5 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
13 mm
Description
Dimensions similar to DIN 6527. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 13 mm Overall length L: 57 mm Shank Dia. Ds: 6 mm Shank form: HB Corner chamfer width at 45 Deg: 0.2 mm
