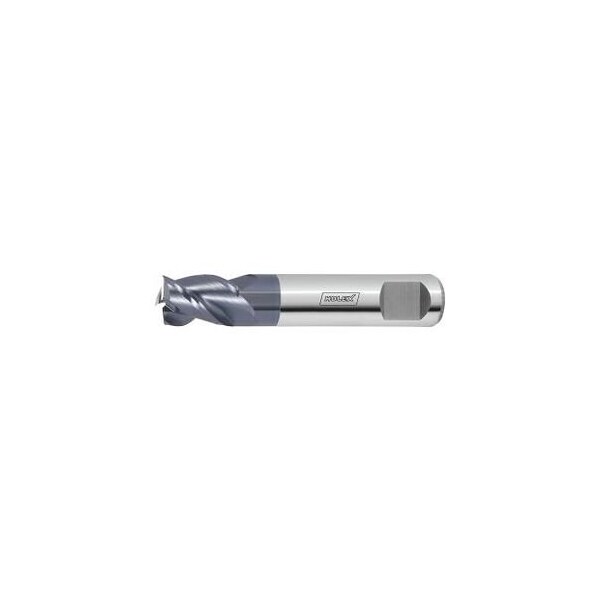

Solid Carbide Mini End Mill, TiAlN Coated, 3 mm
Mfr # 201920 3
Zoro # G514381777
product price: $32.35
/eaKey Features
Type
N
Length of Cut
6 mm
End Mill Style
Chamfer
Overall Length
45 mm
Coolant Through
No
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
201920 3
Zoro #
G514381777
UPC #
-
Country of Origin
Germany
Dimensions
Length of Cut
6 mm
Overall Length
45 mm
Milling Diameter
3 mm
Shank Dia.
6 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
1.5 mm
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
6 mm
Corner Chamfer Width at 45°
0.03 mm
Description
Double relief ground side clearance angle. Center cutting teeth for plunging. Weldon shank similar to DIN 6535 HB. Note: Save on regrinding costs: It is cheaper to use solid carbide mini slot drills to the wear limit than to regrind them. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 6 mm Overall length L: 45 mm Shank Dia. Ds: 6 mm Shank form: HB Corner chamfer width at 45 Deg: 0.03 mm
