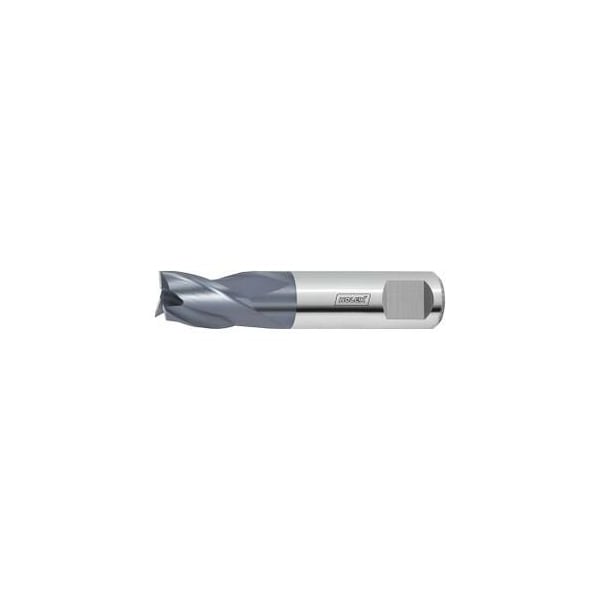

Solid Carbide Mini End Mill, TiAlN Coated, 7 mm
Mfr # 201842 7
Zoro # G214380964
product price:Â
$
27.85
/ea
Key Features
Overall Length
42 mm
Number of Flutes
3
End Mill Style
Square
Finish
TiAlN
Length of Cut
10 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 201842 7
- Zoro #
- G214380964
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Overall Length
- 42 mm
- Milling Diameter
- 7 mm
- Length of Cut
- 10 mm
- Shank Dia.
- 8 mm
- Tolerance Nominal Diameter
- h10
- Maximum Cutting Depth Ap Max When Side Milling
- 10 mm
- Min. Cutting Depth
- 0.01 mm
- Maximum Cutting Depth Ap Max When Slot Milling From Solid
- 7 mm
Description
Weldon shank similar to DIN 6535 HB. Economy version. Note: Save on regrinding costs: It is cheaper to use solid carbide mini slot drills to the wear limit than to regrind them. Through-coolant: no Tolerance nominal Dia. h10 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 3 Flute length Lc: 10 mm Overall length L: 42 mm Shank Dia. Ds: 8 mm Shank form: HB Feed fz for slot milling in steel < 900 N/mm2: 0.03 mm
