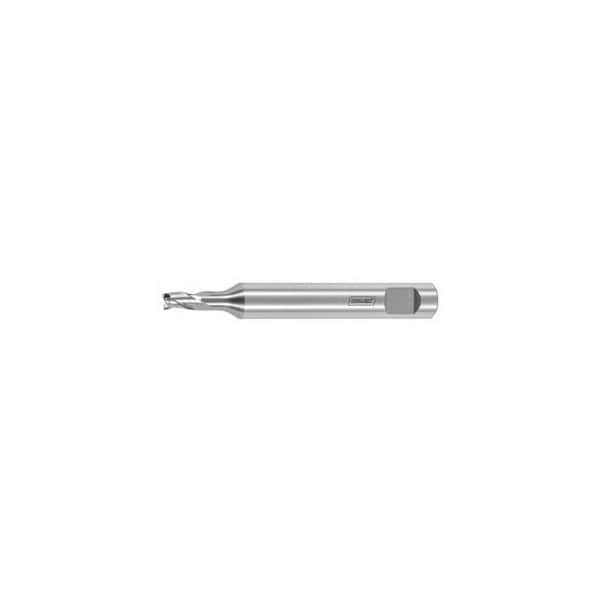

Solid Carbide Mini End Mill, Uncoated, 9 mm
Mfr # 202262 9
Zoro # G914383685
product price: $39.79
/eaKey Features
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Correction Factor Fz
1.25
Feed Fz For Side Milling in Steel < 750 N/mm2
0.08 mm
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
202262 9
Zoro #
G914383685
UPC #
-
Country of Origin
China
Dimensions
Min. Cutting Depth
0.01 mm
Tolerance Nominal Diameter
e8
Maximum Cutting Depth Ap Max When Side Milling
11 mm
Maximum Cutting Depth Ap Max When Slot Milling From Solid
9 mm
Milling Diameter
9 mm
Shank Dia.
10 mm
Overall Length
55 mm
Length of Cut
11 mm
Details
Correction Factor Fz
1.25
Feed Fz For Side Milling in Steel < 750 N/mm2
0.08 mm
Shank Form
HB
Type of Product
End Mill
Color Ring
without
Corner Chamfer Angle
45 Degrees
Shank Type
HB with h6
Cutting Direction
horizontal, oblique and vertical
End Mill Material
Carbide
Type
N
Coolant Through
No
Finish
uncoated
End Mill Style
Chamfer
Number of Flutes
3
Helix Angle
30 Degrees
Feed Fz For Side Milling in Steel < 750 N/mm2
0.08 mm
Description
Shank similar to DIN 6535 HB. Save on regrinding costs: It is cheaper to use solid carbide mini milling cutters to the wear limit than to regrind them. Through-coolant: no Tolerance nominal Dia. e8 No. of teeth Z: 3 Helix angle: 30 degrees Direction of infeed: horizontal, oblique and vertical Shank: HB with h6 No. of teeth Z: 3 Flute length Lc: 11 mm Overall length L: 55 mm Shank Dia. Ds: 10 mm Shank form: HB Feed fz for slot milling in steel < 750 N/mm2: 0.05 mm
