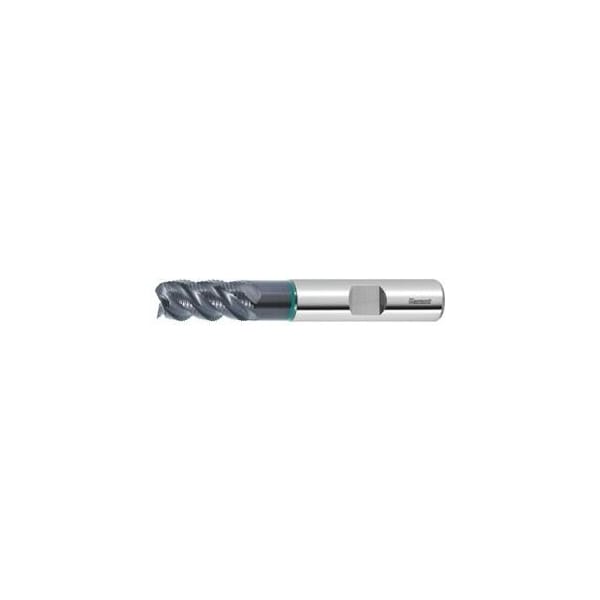

Solid Carbide Roughing End Mill, TiAlN Coated, 8 mm
Mfr # 205715 8
Zoro # G314380956
product price: $89.59
/ea
Free Shipping & Returns
Key Features
Maximum Cutting Depth Ap Max When Slot Milling From Solid
12 mm
Corner Chamfer Width at 45°
0.2 mm
Correction Factor Fz
1.25
Milling profile
HR
Min. Cutting Depth
0.2 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
205715 8
Zoro #
G314380956
UPC #
-
Country of Origin
Netherlands
Dimensions
Maximum Cutting Depth Ap Max When Slot Milling From Solid
12 mm
Corner Chamfer Width at 45°
0.2 mm
Min. Cutting Depth
0.2 mm
Tolerance Nominal Diameter
d11
Maximum Cutting Depth Ap Max When Side Milling
19 mm
Shank Dia.
8 mm
Milling Diameter
8 mm
Overall Length
63 mm
Length of Cut
19 mm
Description
Dimensions similar to DIN 6527. optimized special knuckle profile for roughing. Very high metal removal rate. Application: Especially for MTC Multi Task Cutting use on the new generation of turning / milling Centers. Tolerance nominal Dia. d11 No. of teeth Z: 4 Helix angle: 45 degrees Direction of infeed: horizontal, oblique and vertical Shank: DIN 6535 HB to h6 No. of teeth Z: 4 Flute length Lc: 19 mm Overall length L: 63 mm Shank Dia. Ds: 8 mm Corner chamfer width at 45 Deg: 0.2 mm Feed fz for slot milling in steel < 900 N/mm2: 0.04 mm
