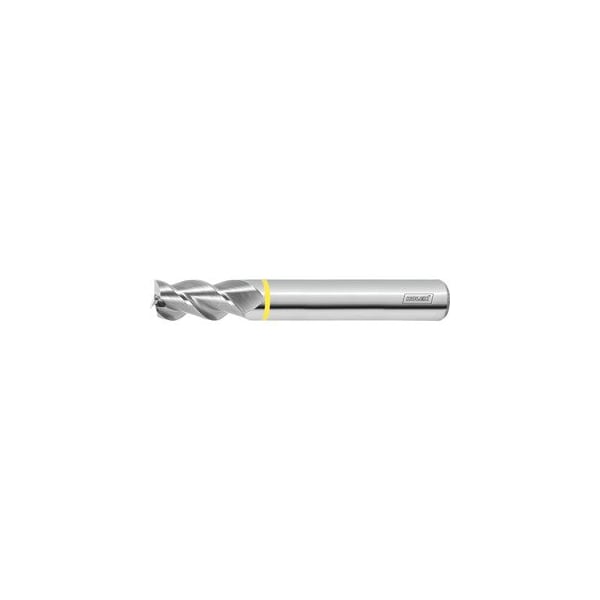

Solid Carbide Square End Mill, 5 mm, Uncoated
Mfr # 202241 5
Zoro # G709578418
product price:Â $32.75
/eaKey Features
Material
Solid Carbide
Milling Diameter
5 mm
Overall Length
57 mm
Number of Flutes
3
End Mill Style
Metric
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 202241 5
- Zoro #
- G709578418
- UPC #
- 4045197767028
- Country of Origin
- Germany
Dimensions
- Milling Diameter
- 5 mm
- Overall Length
- 57 mm
- Length of Cut
- 10 mm
- Shank Dia.
- 6 mm
- Max. Cutting Depth - Side Milling
- 10 mm
- Min. Cutting Depth
- 0.01 mm
- Max. Cutting Depth - Slot Milling
- 5 mm
- Flute Length
- 10 mm
- Diameter Tolerance
- e8
Description
Eccentric relief ground- additionally finish ground in the flutes for outstanding chip evacuation in long-chipping aluminium workpieces. Application: For roughing and finishing. Through-coolant: no Tolerance nominal dia : e8 No. of teeth Z: 3 Helix angle: 45 Deg Direction of infeed: horizontal- oblique and vertical Shank: DIN 6535 HA to h6 No. of teeth Z: 3 Flute length Lc: 10 mm Overall length L: 57 mm Shank dia Ds: 6 mm Feed fz for slot milling in short-chipping aluminium: 0.015 mm Feed fz for side milling in short-chipping aluminium: 0.02 mm
