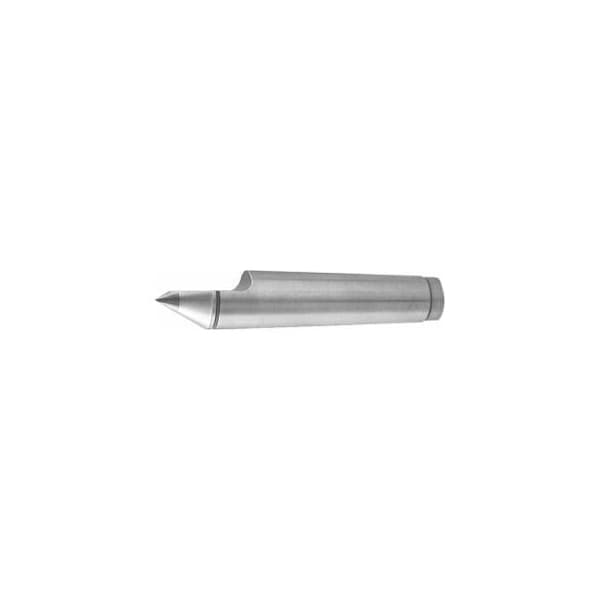

Solid Half Center with Carbide Insert, Morse Taper: 2

Point angle 60 Deg, surfaces ground. Half point with deep inserted carbide Center. This offers particularly good access for the turning tool to the end face of the component. The carbide tipped lathe Centers are marked with a groove to indicate maximum regrinding allowance. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Standard: DIN 806 External Dia D: 18 mm Overall length L: 100 mm Carbide Dia H: 7 mm Face length L1: 30 mm Face-point distance b: 2 mm
