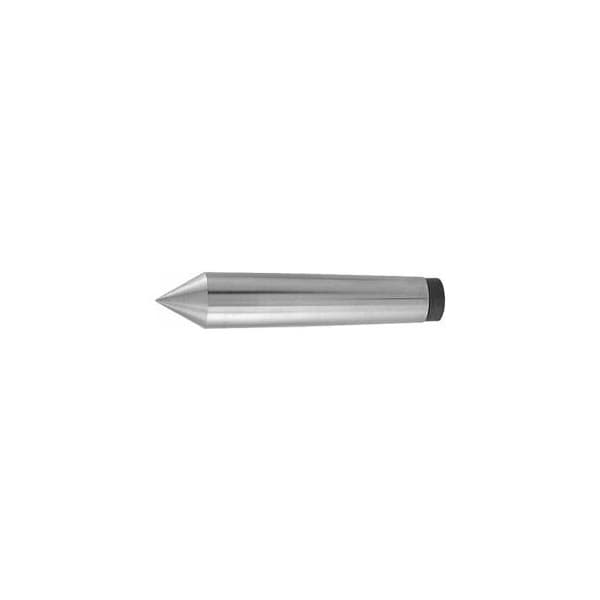

Solid Lathe Center WS, Morse Taper: 5
- Mfr # 323400 5
- Zoro # G014832229
product price:Â
$
128.99
/ea
Free Shipping & Returns
Key Features
Morse Taper
5
Overall Length
200 mm
Outside Dia.
44.7 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 323400 5
- Zoro #
- G014832229
- UPC #
- -
- Country of Origin
- China
- Item
- Centring drill
- Morse Taper
- 5
Description
Point angle 60 Deg, surfaces ground. Full point of tool steel, through hardened. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Standard: DIN 806 External Dia D: 44.7 mm Overall length L: 200 mm
