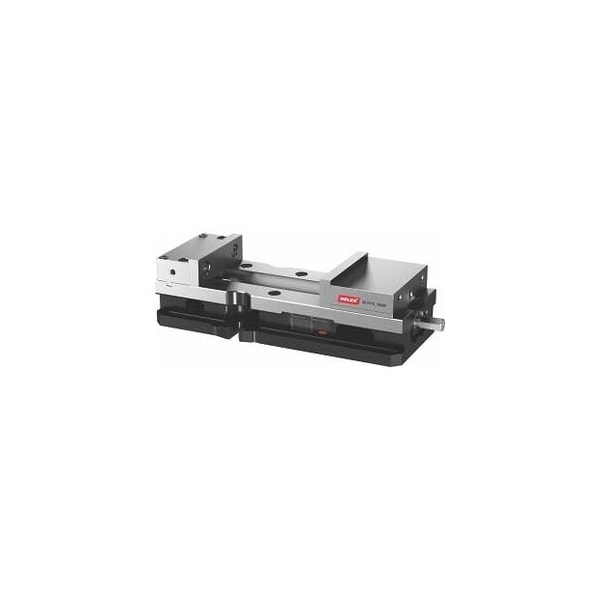

Stationary Machine Vise, Clamping Range: 232mm
- Mfr # 362175 150M
- Zoro # G115232409
product price:Â
$
557.99
/ea
Free Shipping & Returns
Key Features
Quick Adjustment
No
Colour Code for Suitable Accessories
NC-HOLEX
Clamping Force
36 kN
Jaw Height
44.5 mm
Width across Flats
19 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 362175 150M
- Zoro #
- G115232409
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Dimensions
- Jaw Width
- 151 mm
- Jaw Height
- 44.5 mm
- Width across Flats
- 19 mm
- Base Body Length
- 427 mm
- Base Body Width
- 186 mm
- Base Body Height
- 73 mm
Details
- Item
- Machine vice
- Quick Adjustment
- No
- Colour Code for Suitable Accessories
- NC-HOLEX
- Clamping Force
- 36 kN
- Type
- L-keys for hexagonal socket screws
- Hole Centre Spacing
- 98.4 mm
- Interchangeable Jaws
- Yes
Description
Sturdy base body of cast iron, slides and base area hardened. Cleaning holes in the base body for good flow of chips. Less component lift-off thanks to special transfer of force in the mobile jaw. Application: Versatile clamping unit for machining Centers. Supplied with: Incl. 2 pcs. top jaws, 2 pcs. front jaws No. 362181 and 1 pc. hand crank. Optional extras: Front jaws No. 362177 - 362183, crank No. 362190, spare-parts set No. 362199. Mounted with Tee bolts No. 375300 and aligned with tenons No. 375365. Note: Alignment dimensions not compatible with those of other manufacturers. Metric version - screws and threads in metric version, drive hexagon = 19 mm AF. Type: L-keys for hexagonal socket screws Clamping range b: 0 232 mm Clamping force: 36 kN Base body height c +/, 0.012: 73 mm Jaw height C: 44.5 mm Jaw width A: 151 mm Base body length a: 427 mm
