Shop HOLEX

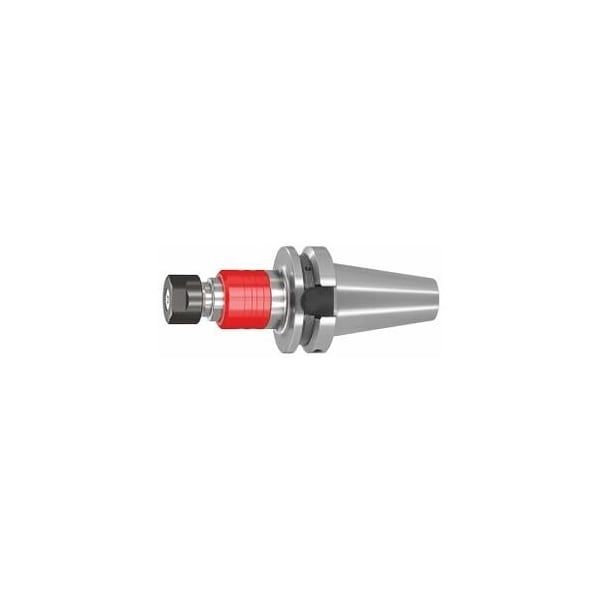

Tapping chuck, ER Synchro, BT 40, for ER Collets: 16

  • Mfr # 338193 16

  • Zoro # G014777230

product price:
$
286.99
/ea
Free Shipping & Returns

Key Features

Dia. (In.)
1.1024
Outside Dia.
34 mm
Length Compensation By Tension
0.5 mm
Standards
ISO 7388-1
Coolant Through
Yes, With Max. 50 Bar
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
338193 16
Zoro #
G014777230
UPC #
-
Country of Origin
China

Dimensions

Dia. (In.)
1.1024
Outside Dia.
34 mm
Length Compensation By Tension
0.5 mm
Length Compensation By Compression
0.5 mm

Details

Item
Tapping head
Standards
ISO 7388-1
Coolant Through
Yes, With Max. 50 Bar
Taper
BT40
Projection
85 mm
Shape
AD
Tapping Range
M4 − M12

Description

With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Pull studs No. 308760 - 308806. Note: Do not degrease the synchro tapping chuck. Shape: AD Tapping range: M4 M12 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 34 mm Internal Dia D1: 28 mm Overhang dimension A: 85 mm
