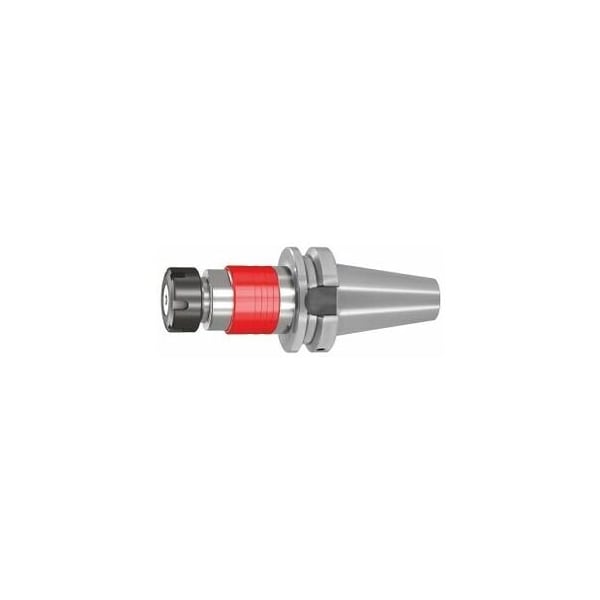

Tapping chuck, ER Synchro, BT 40, for ER Collets: 25
Mfr # 338193 25
Zoro # G014777247
product price:Â $291.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
1.6535
Taper
BT40
Standards
ISO 7388-1
Coolant Through
Yes, With Max. 50 Bar
Projection
100 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
338193 25
Zoro #
G014777247
UPC #
-
Country of Origin
China
Dimensions
Dia. (In.)
1.6535
Length Compensation By Compression
0.5 mm
Outside Dia.
45 mm
Length Compensation By Tension
0.5 mm
Details
Item
Tapping head
Taper
BT40
Standards
ISO 7388-1
Coolant Through
Yes, With Max. 50 Bar
Projection
100 mm
Shape
AD
Tapping Range
M6 - M20
Description
With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Pull studs No. 308760 - 308806. Note: Do not degrease the synchro tapping chuck. Shape: AD Tapping range: M6 - M20 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 45 mm Internal Dia D1: 42 mm Overhang dimension A: 100 mm
