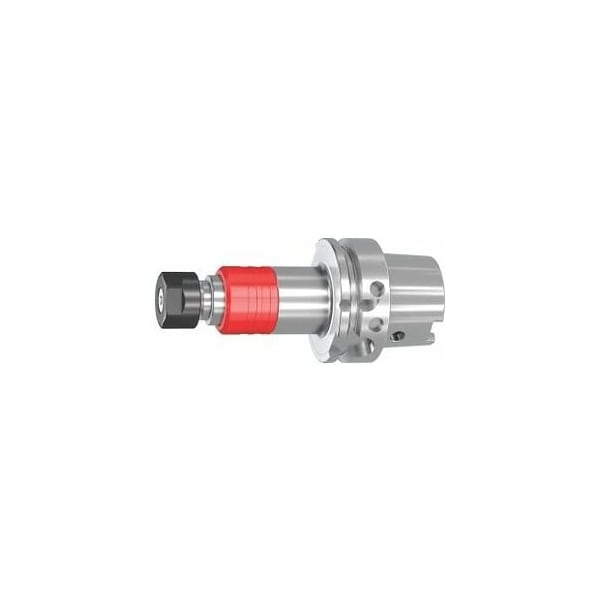

Tapping chuck, ER Synchro, HSK-A 63, for ER Collets: 16
Mfr # 338195 16
Zoro # G414777243
product price: $404.99
/ea
Free Shipping & Returns
Key Features
Dia. (In.)
28 mm
Projection
110 mm
Coolant Through
Yes, With Max. 50 Bar
Taper
HSK63A
Length Compensation By Tension
0.5 mm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
338195 16
Zoro #
G414777243
UPC #
-
Country of Origin
China
Dimensions
Dia. (In.)
28 mm
Length Compensation By Tension
0.5 mm
Length Compensation By Compression
0.5 mm
Outside Dia.
34 mm
Details
Item
Tapping head
Projection
110 mm
Coolant Through
Yes, With Max. 50 Bar
Taper
HSK63A
Tapping Range
M4 − M12
Standards
DIN 69882-6
Shape
A
Description
With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Coolant feed pipe for HSK No. 309880. Note: Do not degrease the synchro tapping chuck. Shape: A Tapping range: M4 M12 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 34 mm Internal Dia D1: 28 mm Overhang dimension A: 110 mm
