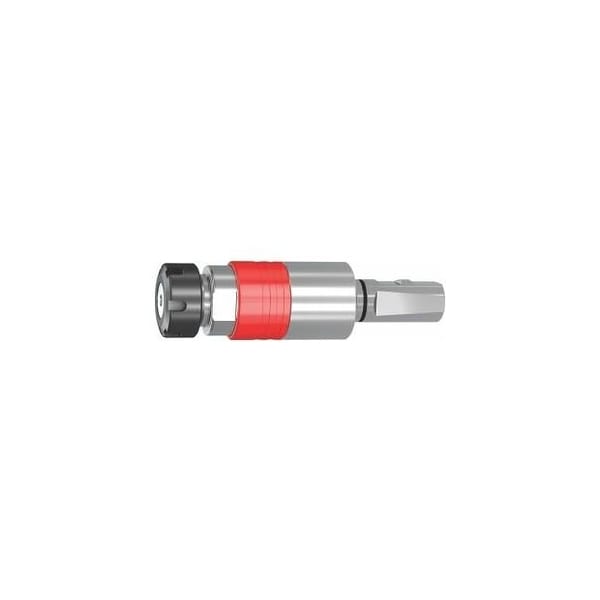

Tapping chuck, ER Synchro, Shank Diameter: 25 mm, for ER Collets: 25
Mfr # 338198 25
Zoro # G114777239
product price:Â $302.99
/ea
Free Shipping & Returns
Key Features
Outside Dia.
45 mm
Shank Dia.
25 mm
Length Compensation By Compression
0.5 mm
Dia. (In.)
42 mm
Standards
DIN 1835 B, E
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
338198 25
Zoro #
G114777239
UPC #
-
Country of Origin
China
Dimensions
Outside Dia.
45 mm
Shank Dia.
25 mm
Length Compensation By Compression
0.5 mm
Dia. (In.)
42 mm
Length Compensation By Tension
0.5 mm
Details
Standards
DIN 1835 B, E
Tapping Range
M6 - M20
Coolant Through
Yes, With Max. 50 Bar
Projection
110 mm
Item
Tapping head
Description
With minimum length adjustment MLA, by means of a damping element. Internal coolant supply up to 50 bar. Increases the tool life of taps/thread formers. Application: On machining Centers with synchronised spindles. For compensating the difference in pitch between tap and synchronised spindle. For compensating the pitch tolerances of taps. Optional extras: ER collets for machine taps No. 309399 and 309447. Note: Do not degrease the synchro tapping chuck. Through-coolant: yes, with max. 50 bar Tapping range: M6 M20 Length compensation by compression: 0.5 mm Length compensation by tension: 0.5 mm External Dia D: 45 mm Internal Dia D1: 42 mm Overhang dimension A: 110 mm
