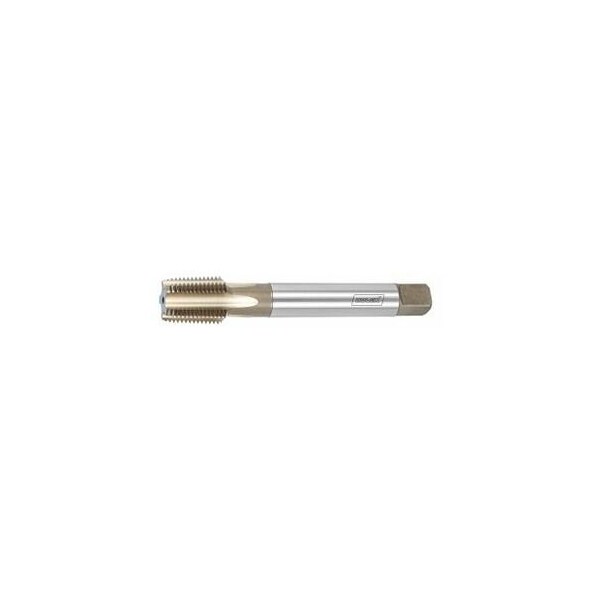

Taps, 3/8"-18, 3 Flutes, NPT
Mfr # 138095 3/8-18
Zoro # G414423911
product price:Â
$
80.33
/ea
Key Features
Number of Flutes
3
Tap Thread Type
NPT
Overall Length
100
Shank Dia.
12 mm
Tap Finish
Uncoated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 138095 3/8-18
- Zoro #
- G414423911
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Tap Thread Size
- 3/8"-18
- Overall Length
- 100
- Shank Dia.
- 12 mm
Details
- Item
- Taps
- Number of Flutes
- 3
- Tap Thread Type
- NPT
- Tap Finish
- Uncoated
- Tap Material
- HSS E
- Standards
- Works standard
Description
HOLEX Clever Tap: Sturdy tap for conventional standard applications. High-quality HSS-E tool material and geometry for steels. Surface: Bronze-colored tempered thread profile. Application: Tapered pipe threads NPT to ANSI B1.20.1, for threads with sealants. See the table for the specified minimum size of the tapping hole. Recommendation: Tapping hole Dia. A: Pre-drill a plain hole, do not use a reamer. Tapping hole Dia. B: Pre-drill a plain hole then ream it using a 1:16 taper reamer see No. 162650. The taper bore Dia. can then be checked laterally by reference to the Dmax check dimension see table. Variant B for drilling the tapping hole offers the best process reliability for the tapping operation. Threads per inch: 18 Overall length L: 100 mm Shank Dia. Ds: 12 mm Shank square: 9 mm Tapping hole Dia. A: 9/16 in Tapping hole Dia. B: 14.1 mm
