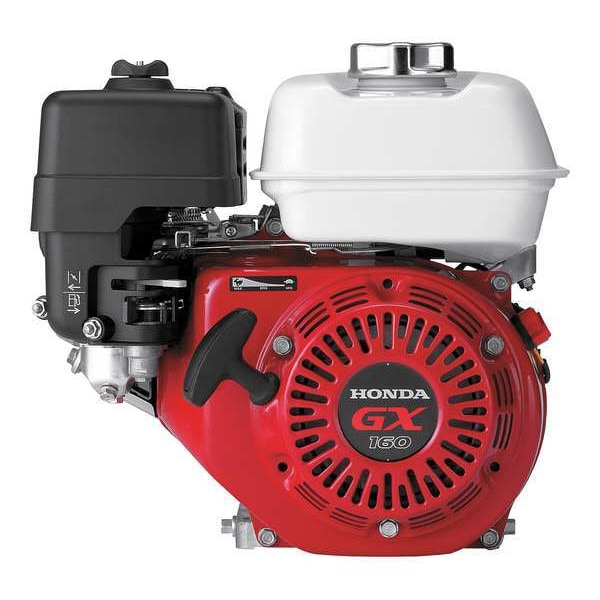

Honda Gas Engine, 3600 rpm, Horizontal Shaft GX160TX2 - main

Gas Engine, 3600 rpm, Horizontal Shaft

  • Mfr # GX160TX2

  • Zoro # G5267425

product price: $469.99
/ea
Free Shipping & Returns

Key Features

Gross Torque
7.6 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
5/8 in x 18 UNF
Shaft Length (In.)
2 43/100 in
Fuel Tank Capacity (Qt.)
3.3 qt
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX160TX2
Zoro #
G5267425
UPC #
-
Country of Origin
Thailand

Dimensions

Shaft Dia. (In.)
5/8 in x 18 UNF
Shaft Length (In.)
2 43/100 in
PTO Shaft Height (In.)
4.2 in
PTO Shaft Dia. (In.)
0.75 in
Overall Width (In.)
14.3 in
Overall Height (In.)
13.6 in
Shaft Height (In.)
4.2 in
Overall Depth (In.)
12.2 in
PTO Shaft Length (In.)
2.43 in
Overall Depth Facing PTO (In.)
12.2 in
Overall Height
13 5/8 in
Overall Width
14 5/16 in
PTO Shaft Height
4 3/16 in
Overall Depth
12 3/16 in
Overall Depth Facing PTO
12 3/16 in
Shaft Height
4 3/16 in
PTO Shaft Diameter
3/4 in
Shaft Diameter
5/8 in
PTO Shaft Length
2 7/16 in
Shaft Length
2 7/16 in

Details

Gross Torque
7.6 lb-ft
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
3.3 qt
Air Filter
Yes
Item
Gasoline Engine
Ignition Type
Transistor Magneto
Shaft Configuration
Threaded
Series
GX
Starter Type
Recoil
Agency Compliance
CARB/OHV 50 States
Engine RPM
3,600 RPM
Function
General Purpose
RPM
3,600 RPM
Bearings
Ball
4 Cycle Engine
yes
Start
Recoil
Cylinders
1
Rotation
Counterclockwise
Low Oil Shut Down
Yes
Overall H Facing PTO (In.)
13.6 in
Gear Box
No
Net Torque
7.6 @ 2500 RPM
Features
Cast Iron Cylinder Sleeve, Oil Alert
Overall W Facing PTO (In.)
14.3 in
Recommended Use
Agricultural Equipment, Commercial Lawn and Garden Equipment, Construction/Industrial Equipment, Forestry Equipment, Generators, Pressure Washers, Tillers/Cultivators, Water Pumps
Muffler
Yes
Design
Overhead Valve
Application
General Purpose
Maintenance Frequency
Annually
Air Cleaner Type
Dual Element
PTO Shaft Key (In.)
1.5 in
Standards
SAE J1349
PTO Shaft Key
1 1/2 in
Overall W Facing PTO
14 5/16 in
Engine Cycle
4-Cycle
Number of Cylinders
1
Engine Series
GX160 Series
Engine Displacement
163 cc
Start Type
Recoil
Overall H Facing PTO
13 5/8 in
Horsepower
4.8 hp
Maximum Speed
3,600 RPM
CARB Compliant
CARB Compliant
Engine Brand
Honda
Fuel Tank Capacity
3.3 qt

Description

Gasoline Engine, Engine Series GX160 Series, Gross Torque 7.6 lb-ft, Horsepower 4.8 hp, Shaft Orientation Horizontal, Shaft Configuration Threaded, Shaft Diameter 5/8 in, Shaft Length 2 7/16 in, Start Type Recoil, Maximum Speed 3,600 RPM, Muffler Yes, CARB Compliant CARB Compliant, Engine Brand Honda, Engine Displacement 163 cc, Fuel Tank Capacity 3.3 qt, Engine Cycle 4-Cycle, Net Torque 7.6 @ 2500 RPM, Overall Depth 12 3/16 in, Overall Depth Facing PTO 12 3/16 in, Overall H Facing PTO 13 5/8 in

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CA
