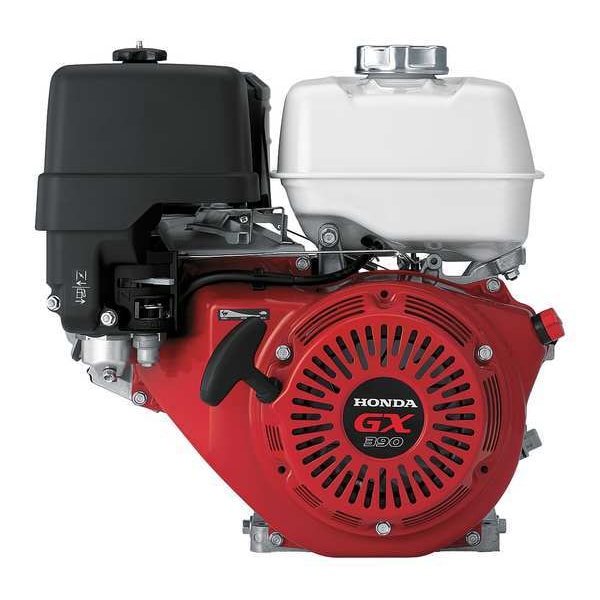

Honda Gas Engine, 3600 rpm, Recoil Start GX390QA2 - main

Gas Engine, 3600 rpm, Recoil Start

  • Mfr # GX390QA2

  • Zoro # G5267361

product price: $769.99
/ea
Free Shipping & Returns

Key Features

Gross Torque
19.5 lb-ft
Shaft Orientation
Horizontal
Shaft Dia. (In.)
1.0
Shaft Length (In.)
3 12/25 in
Fuel Tank Capacity (Qt.)
6.4 qt
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GX390QA2
Zoro #
G5267361
UPC #
-
Country of Origin
Thailand

Dimensions

Shaft Dia. (In.)
1.0
Shaft Length (In.)
3 12/25 in
Shaft Height (In.)
5.26 in
PTO Shaft Dia. (In.)
1 in
Overall Width (In.)
19.1 in
Overall Depth Facing PTO (In.)
16 in
PTO Shaft Length (In.)
3.48 in
Overall Height (In.)
17.7 in
PTO Shaft Height (In.)
5.26 in
Overall Depth (In.)
16 in
Overall Height
17 11/16 in
Overall Width
19 1/8 in
Overall Depth
16 in
Shaft Length
3 1/2 in
PTO Shaft Diameter
1 in
Shaft Diameter
1 in
PTO Shaft Length
3 1/2 in
PTO Shaft Height
5 1/4 in
Overall Depth Facing PTO
16 in
Shaft Height
5 1/4 in

Details

Gross Torque
19.5 lb-ft
Shaft Orientation
Horizontal
Fuel Tank Capacity (Qt.)
6.4 qt
Design
Overhead Valve
Maintenance Frequency
Annually
4 Cycle Engine
yes
Function
General Purpose
Bearings
Ball
Ignition Type
Digital CDI
Low Oil Shut Down
Yes
PTO Shaft Key (In.)
1.7 in
Agency Compliance
CARB/OHV 50 States
Overall W Facing PTO (In.)
19.1 in
Air Filter
Yes
RPM
3,600 RPM
Item
Gasoline Engine
Gear Box
No
Application
General Purpose
Start
Recoil
Starter Type
Recoil
Rotation
Counterclockwise
Overall H Facing PTO (In.)
17.7 in
Recommended Use
Agricultural Equipment, Commercial Lawn and Garden Equipment, Construction/Industrial Equipment, Generators, Pressure Washers, Small Vehicles, Tillers/Cultivators, Water Pumps
Cylinders
1
Series
GX
Muffler
Yes
Engine RPM
3,600 RPM
Shaft Configuration
Key
Net Torque
19.5 @ 2500 RPM
Shaft Key (In.)
1 7/10 in
Features
Cast Iron Cylinder Sleeve, Oil Alert
Air Cleaner Type
Dual Element
Standards
SAE J1349
Maximum Speed
3,600 RPM
PTO Shaft Key
1 11/16 in
Engine Cycle
4-Cycle
Overall W Facing PTO
19 1/8 in
Engine Displacement
389 cc
Number of Cylinders
1
Fuel Tank Capacity
6.4 qt
Shaft Key
1 11/16 in
Overall H Facing PTO
17 11/16 in
CARB Compliant
CARB Non-Compliant
Start Type
Recoil
Engine Brand
Honda
Horsepower
11.7 hp
Engine Series
GX390 Series

Description

Gasoline Engine, Engine Series GX390 Series, Gross Torque 19.5 lb-ft, Horsepower 11.7 hp, Shaft Orientation Horizontal, Shaft Configuration Key, Shaft Diameter 1 in, Shaft Length 3 1/2 in, Start Type Recoil, Maximum Speed 3,600 RPM, Muffler Yes, CARB Compliant CARB Non-Compliant, Engine Brand Honda, Engine Displacement 389 cc, Fuel Tank Capacity 6.4 qt, Engine Cycle 4-Cycle, Net Torque 19.5 @ 2500 RPM, Overall Depth 16 in, Overall Depth Facing PTO 16 in, Overall H Facing PTO 17 11/16 in

Restrictions

Hazardous material
This item has been restricted from sale in the following states: CA
