  11. Conventional or Heat Pump Thermostat, 7 Programs, 3 H 3 C, Hardwired, 24VAC
This item is Discontinued.

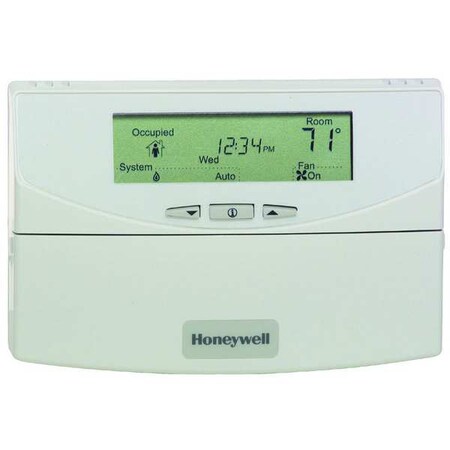

Honeywell Conventional or Heat Pump Thermostat, 7 Programs, 3 H 3 C, Hardwired, 24VAC T7351F2010

Conventional or Heat Pump Thermostat, 7 Programs, 3 H 3 C, Hardwired, 24VAC (Discontinued)

  • Mfr # T7351F2010
  • Zoro # G3200127
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T7351F2010
Zoro #
G3200127
UPC #
085267307703
Country of Origin
Mexico

Dimensions

Height
4 1/4"
Width
6 5/8"
Depth
1 7/8 in
Overall Height
4 1/2 in
Overall Depth
2 1/2 in
Mounting Hole Diameter
3/16 in
Overall Width
6 3/4 in
Digit Size
Standard

Details

Item
Conventional or Heat Pump Thermostat
Voltage
24VAC
Stages Heat
3
Mounting Type
Horizontal
Color
Trident White
Control Range
Cool 50 Degrees to 99 Degrees F, Heat 40 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Stages Cool
3
Dual Transformer Compatible
Yes
Power Method
Hardwired
750mV Compatible
No
Programs per Week
7
Display Type
LCD, Backlit
Temp. Settings per Day
4
Low Battery Indicator
No
Includes
Subbase
Fan Switching
Auto-on
WiFi Capability
No
Key Pad Lockout
Yes
Features
Key Pad Programming
Display Color
Green
Terminal Designations
RH, RC, Y1, Y2, Y3, W1, W2, W3, G, O/B, X, Aux, AS, OS, T3, T4, T5, T6, T7, HS, HC, HP, M, ebus
Humidification Control
Yes
Battery Backup
No
For Use With
Remote Sensors, Humidity Sensors, Conventional or Heat Pump Systems
Programmable Fan
Yes
Remote Sensing Capability
Yes
Footnotes
1, 2, 8
Standards
cUL, FCC Part 15 Subpart J Class A, NEC Class 2, UL 873 Recognized
Temperature Limiting
Yes
Mounting
Horizontal
Temporary Temperature Hold
Yes
Temporary Program Override
Yes
Dehumidification Control
Yes
Type
Digital Programmable Multi Stage H/C or HP
Control Type
Push Button
Stages
3H/3C Conventional, 4H/2C Heat Pump
Occupancy Sensor
Includes Occupancy Sensor
Number of Cooling Stages - Conventional System
3
Shape
Rectangle
Number of Heating Stages - Heat Pump System
4
Compatible System Type
Heat Pump with Aux
Fan Settings
Auto-On
Sensor Location
Remote
Differential Type
Fixed
Operating Temperature Range
30 Degrees to 110 Degrees F
Maximum Control Temperature
99 Degrees F
Housing Color
White
External Power Source
Furnace
Temperature Scale
Fahrenheit/Celsius
Thermostat Type
Low Voltage
Number of Heating Stages - Conventional System
3
Temperature Control Range
40 Degrees to 99 Degrees F
Minimum Operating Humidity
5 %
Number of Cooling Stages - Heat Pump System
2
Changeover Type
Automatic and Manual
Mounting Direction
Horizontal
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-On
Number of Relay Inputs
1
Frequency
50 Hz, 60 Hz
Millivolt Compatible
No
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Electrical Connection Type
Hardwired
Includes Positive Off
No
Temperature Sensitivity
+/-1 Degrees F
Temperature Readout
Yes
Includes Batteries
No
Smart Connectivity
No Connectivity
Application/Stages
Heat and Cool; 3H/3C Conventional, 4H/2C Heat Pump
Maximum Operating Temperature
110 Degrees F
Operating Humidity Range
5% to 90% RH
Contact Rating
20 to 30V AC
Maximum Operating Humidity
90 %
Mounting Direction/Shape
Horizontal
Minimum Control Temperature
40 Degrees F
Programming Capability
365 Day Programming
Temperature settings per day
2 (Not Occupied Periods per Day), 2 Occupied
Minimum Operating Temperature
30 Degrees F
Backlit Screen
Yes
Backlit Screen Color
Green
Application
Heat and Cool
Number of Zones
1

Description

Low Voltage Thermostat, Stages Heat 3, Stages Cool 3, Temp. Settings per Day 4, Programs per Week 7, Terminal Designations AS, AUX, EBUS, G, HC, HP, HS, M, O/B, OS, RC, RH, T3, T4, T5, T6, T7, W1, W2, W3, X, Y1, Y2, Y3, WiFi Capability No, System Switching Auto-Heat-Cool-Off-Emergency, Fan Switching Auto-On, Display Type Digital, Display Color Green, Key Pad Lockout Yes, Programmable Fan Yes, Humidification Control No, Dehumidification Control Yes, Remote Sensing Capability Yes
