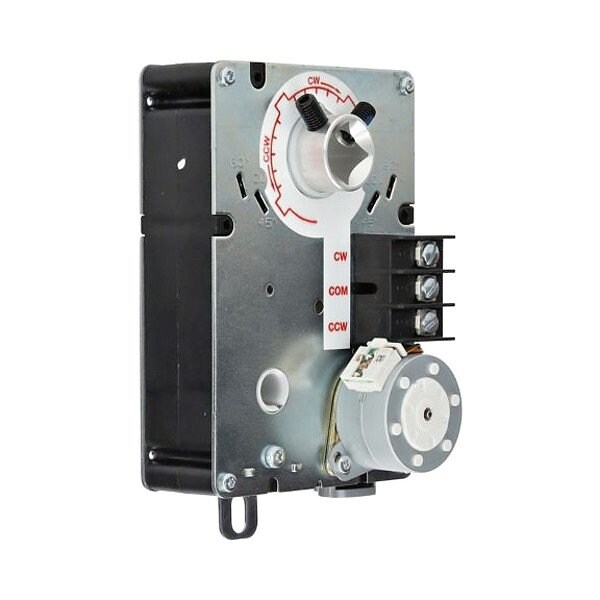

Damper Actuator
- Mfr # ML6161A2009/U
- Zoro # G616384942
product price:Â
$
379.99
/ea
Free Shipping & Returns
Key Features
Spring Return
Non-Spring Return
Signal Type
Floating Point
Input Voltage
24V AC
Power Rating
2.25W
Power Consumption
1.8 VA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ML6161A2009/U
- Zoro #
- G616384942
- UPC #
- 085267168663
- Country of Origin
- Mexico
- Spring Return
- Non-Spring Return
- Signal Type
- Floating Point
- Item
- Damper Actuator
- Input Voltage
- 24V AC
- Power Rating
- 2.25W
- Power Consumption
- 1.8 VA
- Shaft Type
- 3/8" to 1/2" Round or Square
- Maximum Operating Temperature
- 125 Degrees F
- For Shaft Shape
- Round, Square
- Contact Form
- SPDT
- Standards
- CE, CSA, cUL, UL File No. E4436, Guide No. XAPX2
- Shaft Rotation
- CW/CCW
- Number of Auxiliary Switches
- 2
- Weight
- 1.3 lb
- Stroke Degree
- 45 Degrees ; 60 Degrees ; 90 Degrees
- Product Type
- Damper Actuator
- NEMA Rating
- 1
- Plenum Rating
- Plenum Rated
- Application
- Dampers, Valves
- Valve Application
- Damper and Valve
- Minimum Operating Temperature
- 20 Degrees F
- Rated Torque
- 35 in-lb
Description
Damper Actuator, Valve Application Damper and Valve, Signal Type Floating Point, Rated Torque 35 in-lb, Input Voltage 24V AC, Contact Form SPDT, NEMA Rating 1, Spring Return Non-Spring Return, Shaft Type 3/8 In. to 1/2 In. Round or Square, Shaft Rotation CW/CCW, Stroke Degree 45 Degrees ; 60 Degrees ; 90 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 125 Degrees F, Minimum Operating Temperature 20 Degrees F, Weight 1.3 lb, Overall Width 3 3/8 in
