Direct Acting 60F To 90F Throttling R

  • Mfr # TP970A2038

  • Zoro # G4842868


product price: $500.99
/ea
Free Shipping & Returns

Key Features

Sensor Type
Bi-Metallic Spring
Overall Width
2 in
Throttling Range
2 Degrees to 10 Degrees F
Application
Heat Only
Control Type
Exposed Dial
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TP970A2038
Zoro #
G4842868
UPC #
-
Country of Origin
United States

Dimensions

Overall Width
2 in
Overall Height
3 1/4 in
Overall Depth
1 5/8 in

Details

Item
Pneumatic Thermostat
Sensor Type
Bi-Metallic Spring
Throttling Range
2 Degrees to 10 Degrees F
Application
Heat Only
Control Type
Exposed Dial
Air Consumption
19 scim
Includes
Mounting Plate
Maximum Control Temperature
100 Degrees F
Number of Dials
Single
Temperature Control Range
59 Degrees to 90 Degrees F
Manual Indexing Switch
No
Differential Type
Adjustable
Action
Direct
Number of Pipes
2
Temperature Scale
Fahrenheit
Thermostat Action
Direct
Temperature Settings
Single Temperature
Compatible System Type
Pneumatic Valves and Damper Actuators
Mounting Direction/Includes Cover
Vertical, Yes
Maximum Air Pressure
25 psig
Number of Pipes/Air Flow Output
2 Pipes, High Volume
Air Flow Output
High Volume
Mounting Direction
Vertical

Description

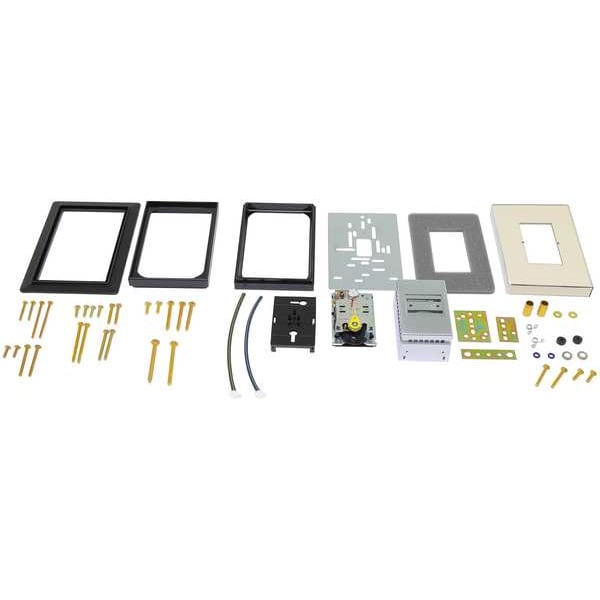

Pneumatic Thermostat, Air Consumption 19 scim, Throttling Range 2 Degrees to 10 Degrees F, Includes Mounting Plate
