Shop HONEYWELL

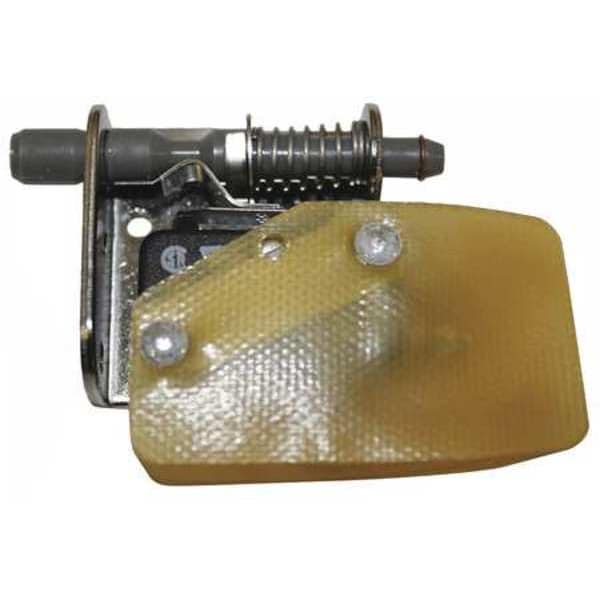

Door Switch - SPDT, 15A, Screw Terminals, Pull-to-Override, AC Series

  • Mfr # 22AC2-UL

  • Zoro # G4718357

product price:  $70.19
/ea

Key Features

Includes
Stainless Steel Bracket
HP
1/2 hp @ 125/250V AC
Contact Form
SPDT
Switch Function
3 Position, Push Momentary, Pull Maintained
Terminals
Screw
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
22AC2-UL
Zoro #
G4718357
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
0.5 in
Height
1.5 in
Length
1.5 in
Length (Straight Wireway)
1.5 in
Nominal Dimensions
LxWxH 1.50x0.50x1.50" (38.1x12.7x38.1mm)
Overall Height
1.81 in
Overall Width
1.59 in

Details

Item
Door Switch
Includes
Stainless Steel Bracket
HP
1/2 hp @ 125/250V AC
Contact Form
SPDT
Switch Function
3 Position, Push Momentary, Pull Maintained
Terminals
Screw
AC Contact Rating
15 A @ 250 V
DC Contact Rating
0.25 A @ 250 V, 0.5 A @ 125 V
Actuator Material
Polyester
Type of Actuator
Push Rod Plunger
Operating Temp. Range
-65 Degrees to 180 Degrees F
Standards
CSA, UL Listed
Nominal Current
15A
Operator
Polyester Rod
Operating Temperature
-65 to 180 Degree F (-53 to 82 Degree C)
Free Position
0.375" (9.5mm) max
Operating Position
0.203" (5.1mm) OP min
Connection
Screw Terminal
Construction
Stainless Steel Bracket
Electrical Rating
15A/250V AC
Switch Action
Maintained/Momentary
Operating Temperature - Minimum
-40 Degrees F
Number of Positions
3
Operating Temperature - Maximum
185 Degrees F
Series
AC
Horsepower
1/2 @ 125/250V AC
Current
15 A
Terminal Connection Type
Screw Terminals

Description

The Honeywell Door Switch, SPDT, Screw Terminals, 15A is a compact switch assembly intended for use in applications requiring position detection of doors or panels. It features a maintained/momentary switch action with three positions and is rated to interrupt electrical circuits within specified parameters when actuated. The unit includes a “pull-to-override” function that maintains circuit continuity during manual operation.

Key Features:

  • Contact Form: Single Pole Double Throw (SPDT)
  • Electrical Rating: 15 A @ 250 V AC; DC rating of 0.25 A @ 250 V and 0.5 A @ 125 V
  • Horsepower Rating: Up to 1/2 hp at 125/250V AC
  • Actuator Material: Polyester rod plunger
  • Construction: Stainless steel bracket included
  • Terminal Connection Type: Screw terminals designed for wire attachment
  • Operating Temperature Range: -65°F to 180°F (-53°C to 82°C)
  • Nominal Dimensions (LxWxH): 1.50 x 0.50 x 1.50 in (38.1 x12.7 x38.1 mm)
  • Standards: CSA and UL listed
